Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt 2 Bolt Flange Bearing with Bushing, 16 Gauge - 1"
with Grease Fitting (Zerk), Center to Center 2.75", Overall Length 3.375", Bearing Width 1.25", Spherical Diameter 1.69" - Medium Duty



- Triangle Series
- FA
- Type
- 2 Bolt Flange Bearing with Bushing
- Shaft Size (Bore ID)
- 1"
- Inside Diameter Lower Tolerance
- 1.006"
- Inside Diameter Upper Tolerance
- 1.008"
- Bearing Insert Type
- Bearing Ball with Bushing
- Bushing Material
- Sintered Bronze
- Bearing Ball Material
- Stamped Steel
- Bearing Spherical Diameter
- 1.69"
- Lubrication Apparatus
- Grease Fitting (Zerk)
- Other Lubrication Apparatus Options Available
- Yes
- Type of Lubricant
- Grease
- Bearing Width
- 1.25"
- Number of Mount Holes
- 2
- Mount Material
- Steel
- Mount Material Gauge
- 16 Gauge
- Overall Length
- 3.375"
- Mount Width
- 2.438"
- Mount Hole Center to Center
- 2.75"
- Mount Hole Shape
- Round
- Mount Socket Diameter
- 1.69"
- Static Load Rating (lbf)
- 1.69
- Finish
- Pre-Plated Hot Dipped Galvanized Steel
- Other Mount Finish available
- Yes
- Tapped Hole Available
- Yes
- Bearing Fit Options Available
- Yes
- Strength
- Medium Duty
Stamped Steel 2-Bolt Flange Bearing with Sintered Bronze Bushing
Regardless of which bearing material you choose for your application, Triangle Manufacturing has a compatible mounting. For questions about the mountings our flange bearings work well with, click to give us a call at 920-235-3710.
Triangle Series: | FA |
Type: | 2 Bolt Flange Bearing with Bushing |
Shaft Size (Bore ID): | 1" |
Inside Diameter Lower Tolerance: | 1.006" |
Inside Diameter Upper Tolerance: | 1.008" |
Bearing Insert Type: | Bearing Ball with Bushing |
Bushing Material: | Sintered Bronze |
Bearing Ball Material: | Stamped Steel |
Bearing Spherical Diameter: | 1.69" |
Lubrication Apparatus: | Grease Fitting (Zerk) |
Type of Lubricant: | Grease |
Bearing Width: | 1.25" |
Number of Mount Holes: | 2 |
Mount Material: | Steel |
Overall Length: | 3.375" |
Mount Hole Center to Center: | 2.75" |
Mount Socket Diameter: | 1.69" |
Strength: | Medium Duty |
Other Lubrication Apparatus Options Available: | Yes |
Static Load Rating (lbf): | 1.69 |
Mount Material Gauge: | 16 Gauge |
Mount Width: | 2.438" |
Mount Hole Center to Center Type: | Imperial |
Mount Hole Shape: | Round |
Finish: | Pre-Plated Hot Dipped Galvanized Steel |
Other Mount Finish available: | Yes |
Tapped Hole Available: | Yes |
Bearing Fit Options Available: | Yes |
Min. Quantity for RFQ: | 1000 |
With Cushion: | No |

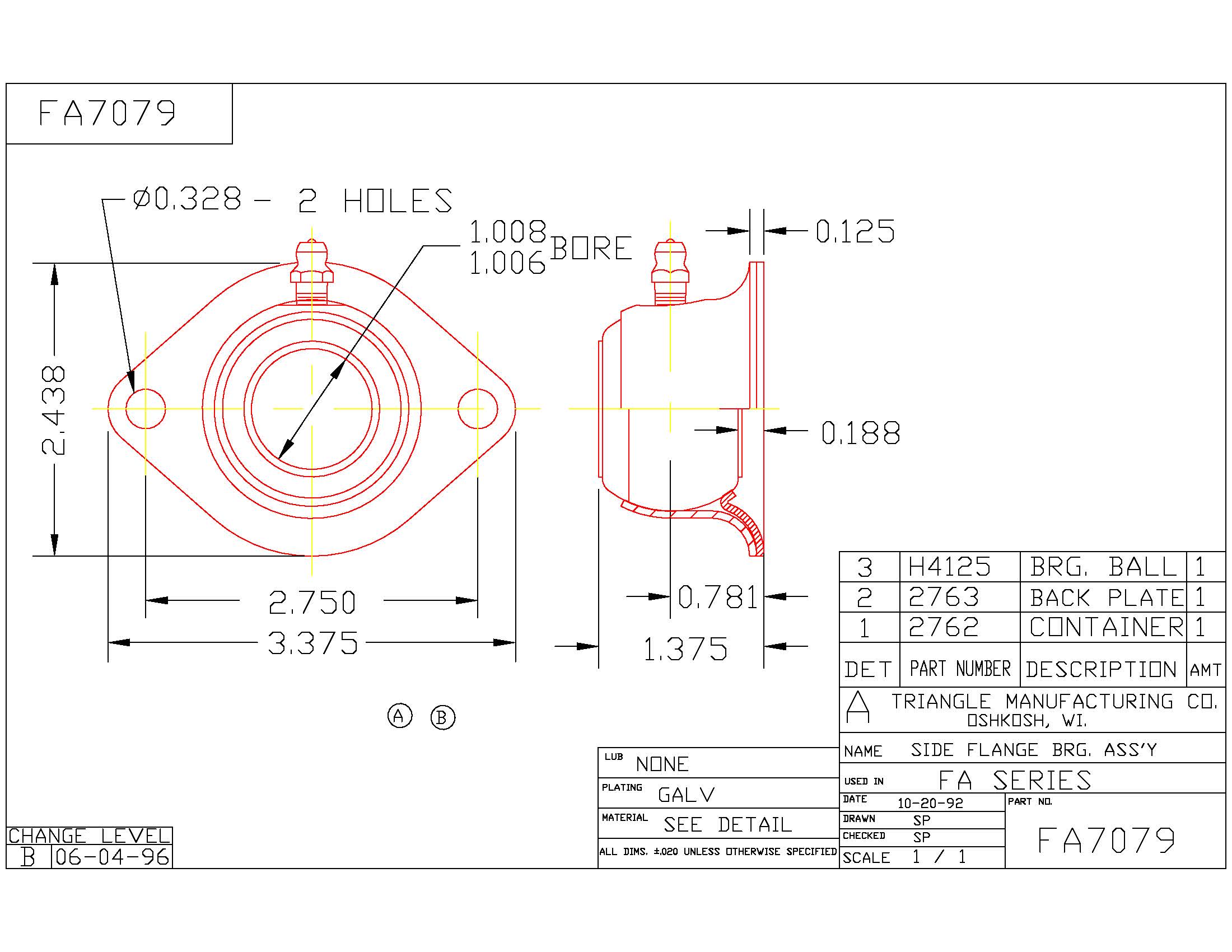

Diagram Drawing File Path: | /var/www/html/Application/webroot/pub/media/catalog/product/technical-images/FA7079_drawig.jpg.jpg |
Bearing Insert Material: | Sintered Bronze |
Bearing Mount Type With Bearing: | No |
Stamped Steel 2-Bolt Flange Bearing with Sintered Bronze Bushing
Regardless of which bearing material you choose for your application, Triangle Manufacturing has a compatible mounting. For questions about the mountings our flange bearings work well with, click to give us a call at 920-235-3710.
