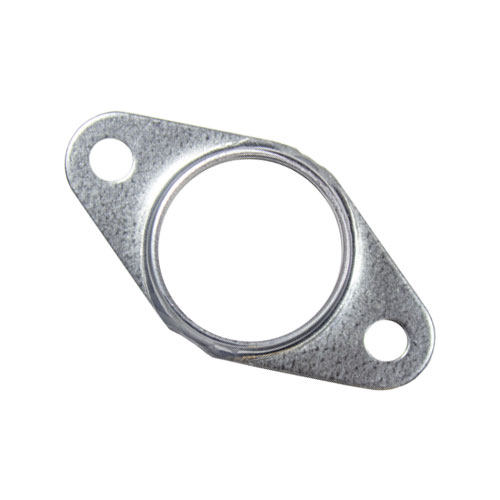

2 Bolt Flange Bearing Mount, 13 Gauge
Center to Center 3.125", Overall Length 4"
- Triangle Series
- FG
- Type
- Flange Bearing Mount
- Other Lubrication Apparatus Options Available
- No
- Number of Mount Holes
- 2
- Mount Material
- Steel
- Mount Material Gauge
- 13 Gauge
- Overall Length
- 4"
- Mount Width
- 2.125"
- Mount Hole Center to Center
- 3.125"
- Mount Hole Shape
- Round
- Mount Socket Diameter
- 2.125"
- Finish
- Pre-Plated Hot Dipped Galvanized Steel
- Other Mount Finish available
- Yes
- Tapped Hole Available
- No
- Bearing Fit Options Available
- No
2-Bolt Steel Flange Bearing Mount Manufactured by Triangle
Triangle's FG-series 2-bolt center flange bearing mounts are stamped from 13-gauge galvanized steel. Depending on the shaft speed and how heavy the loads are, they can be manufactured with a plastic bearing, bronze bearing and iron bearing. Contact our team today with questions about our center flange bearings.
| Triangle Series: | FG |
| Type: | Flange Bearing Mount |
| Number of Mount Holes: | 2 |
| Mount Material: | Steel |
| Overall Length: | 4" |
| Mount Hole Center to Center: | 3.125" |
| Mount Socket Diameter: | 2.125" |
| Other Lubrication Apparatus Options Available: | No |
| Mount Material Gauge: | 13 Gauge |
| Mount Width: | 2.125" |
| Mount Hole Center to Center Type: | Imperial |
| Mount Hole Shape: | Round |
| Finish: | Pre-Plated Hot Dipped Galvanized Steel |
| Other Mount Finish available: | Yes |
| Tapped Hole Available: | No |
| Bearing Fit Options Available: | No |
| Min. Quantity for RFQ: | 100 |
| With Cushion: | No |

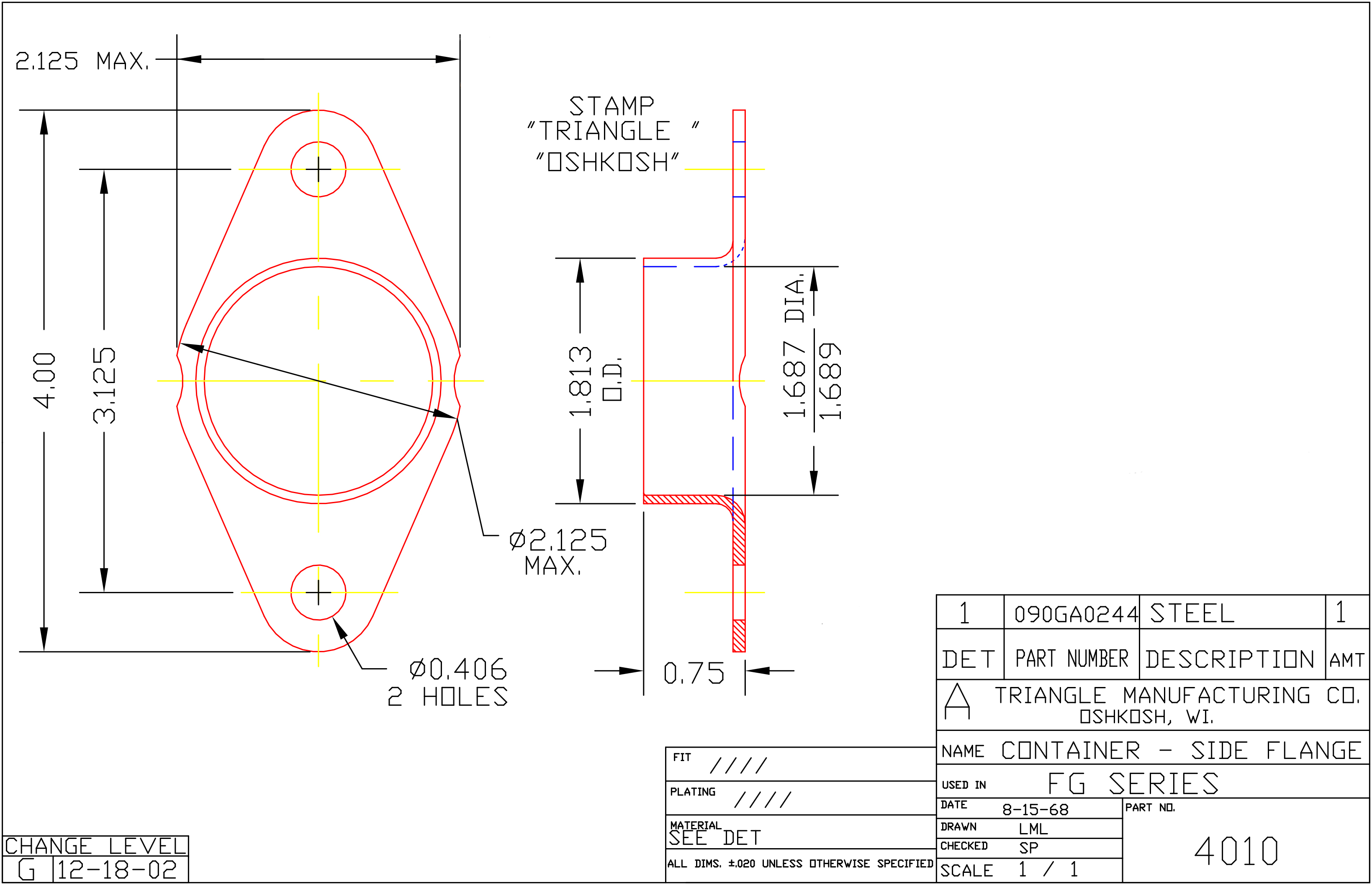

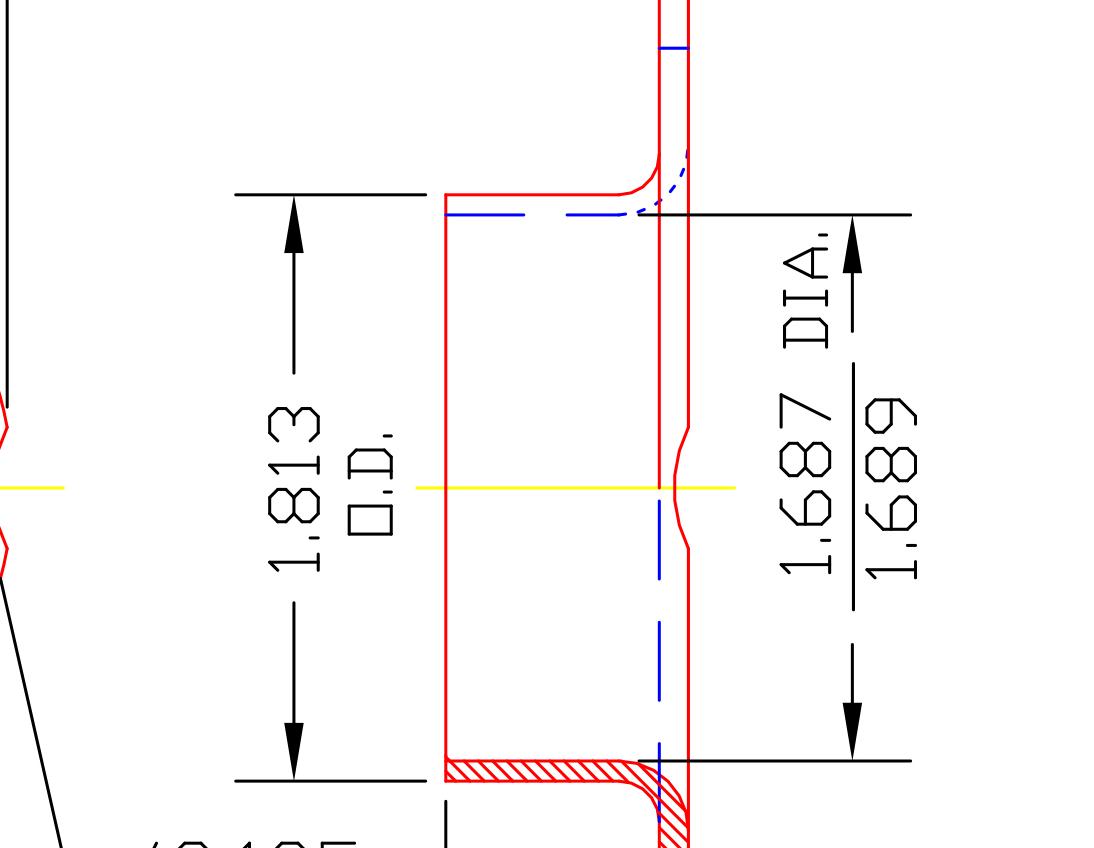

| Diagram Drawing File Path: | /var/www/html/Application/webroot/pub/media/catalog/product/technical-images/4010.jpg |
| Bearing Mount Type With Bearing: | No |
2-Bolt Steel Flange Bearing Mount Manufactured by Triangle
Triangle's FG-series 2-bolt center flange bearing mounts are stamped from 13-gauge galvanized steel. Depending on the shaft speed and how heavy the loads are, they can be manufactured with a plastic bearing, bronze bearing and iron bearing. Contact our team today with questions about our center flange bearings.
Value proposition FG: Flange Bearing Mount
FG flange bearing container mounts are stamped from 13 gauge galvanized steel. They are available with round or square mounting holes depending on your application. They have a bolt to bolt distance of 3.125" and a mount socket diameter of 2.125". They are available with Triangle's ball and rings. Bearing ball options include sintered iron, sintered bronze and molded nylon. If you are in need of a grease fitting, FG flange bearings can be available with one.
