Industrial Adjustable Linkage Assemblies

USA-Made Stamped Metal Linkages in Adjustable Lengths

Stamped from galvanized steel, Triangle adjustable metal linkage assemblies can be manufactured to meet your specifications. From rod ends containing sintered, self-lubricating spherical bearings with load ratings up to 24,000 lbf to wrench flats, Triangle adjustable linkage assembles help you reduce SKUs and simplify inventory management.


Stamping the linkages from carbon steel helps manufacturers in a range of industries save time and money. (Plating is not required.) Using self-lubricating bearings reduces maintenance and prolongs lifespan.

View as Table List

5 Items

per page
Set Descending Direction
Part
Number
Add to
Compare
Bearing Insert Material Mount Material Quantity Request
Quote
R05A11606 52100 (Hard Steel) Carbon Steel Qty:
PRODUCT SPECIFICATIONS
Triangle Series
R5A
Type
Adjustable Linkage
Shaft Size (Bore ID)
5/16"
Mount Material
Carbon Steel
Thread Type
LH, RH Thread
Thread Diameter
5/16"
Thread Length
1.25"
Overall Center to Center Range with Spherical Rod Ends
13.376/14.219
Machined Process
Machined
Thread Cut
5/16-24 UNF / 5/16-24 UNF
View All Product Specs
R05A11607 52100 (Hard Steel) Carbon Steel Qty:
PRODUCT SPECIFICATIONS
Triangle Series
R5A
Type
Adjustable Linkage
Shaft Size (Bore ID)
5/16"
Mount Material
Carbon Steel
Thread Type
LH, RH Thread
Thread Diameter
5/16"
Thread Length
1.25"
Overall Center to Center Range with Spherical Rod Ends
7.376/8.219
Machined Process
Machined
Thread Cut
5/16-24 UNF / 5/16-24 UNF
View All Product Specs

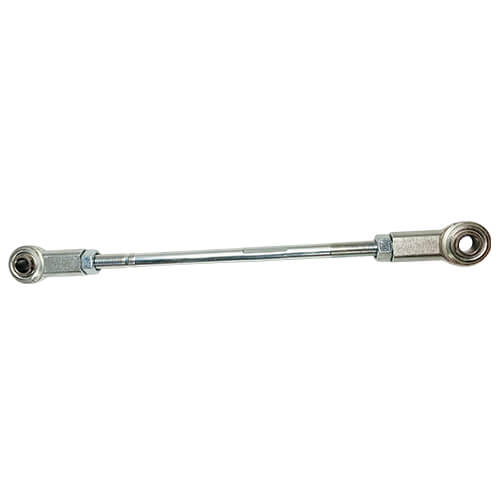

R06A11608 52100 (Hard Steel) Carbon Steel Qty:
PRODUCT SPECIFICATIONS
Triangle Series
R6A
Type
Adjustable Linkage
Shaft Size (Bore ID)
3/8"
Mount Material
Carbon Steel
Thread Type
LH, RH Thread
Thread Diameter
3/8"
Thread Length
1.75"
Overall Center to Center Range with Spherical Rod Ends
19.750/20.594
Machined Process
Machined
Thread Cut
3/8-24 UNF / 3/8-24 UNF
View All Product Specs
R06A11610 52100 (Hard Steel) Carbon Steel Qty:
PRODUCT SPECIFICATIONS
Triangle Series
R6A
Type
Adjustable Linkage
Shaft Size (Bore ID)
3/8"
Mount Material
Carbon Steel
Thread Type
LH, RH Thread
Thread Diameter
3/8"
Thread Length
1.75"
Overall Center to Center Range with Spherical Rod Ends
13.750/14.594
Machined Process
Machined
Thread Cut
3/8-24 UNF / 3/8-24 UNF
View All Product Specs
R06A11609 52100 (Hard Steel) Carbon Steel Qty:
PRODUCT SPECIFICATIONS
Triangle Series
R6A
Type
Adjustable Linkage
Shaft Size (Bore ID)
3/8"
Mount Material
Carbon Steel
Thread Type
LH, RH Thread
Thread Diameter
3/8"
Thread Length
1.75"
Overall Center to Center Range with Spherical Rod Ends
7.750/8.594
Machined Process
Machined
Thread Cut
3/8-24 UNF / 3/8-24 UNF
View All Product Specs
