Steel L Shaped Motor Mount Arm, 16 Gauge

Foot Length 2.117", Bump Locking Mechanism - Normal Duty

Part #: TR10026

TR10026
TR10026
Steel L Shaped Motor Mount Arm, 16 Gauge
Foot Length 2.117", Bump Locking Mechanism - Normal Duty
Part #: TR10026
Part #: TR10026
Motor Mount Arm TR10026
PRODUCT SPECIFICATIONS
Triangle Series
TR
Type
Motor Mount Arm
Other Lubrication Apparatus Options Available
No
Mount Material
Steel
Mount Material Gauge
16 Gauge
Finish
Pre-Plated Hot Dipped Galvanized Steel
Other Mount Finish available
Yes
Tapped Hole Available
No
Bearing Fit Options Available
No
Shape
L Shaped
Strength
Normal Duty
Band Locking Mechanism
Bump
Band Position
1.295"
Foot Angle
110
Foot Radius
0.687"
Overall Head / Foot Length
2.117"
Overall Tail Length
4.41"

16-Gauge L-Shaped Motor Mount Arm

Triangle's 16-gauge L-shaped motor mount arm is manufactured with bellybands for 42-, 48- and 56-frame size motors. They're used in large centrifugal blowers and fans. For more info on our motor mount arms or to request a quote, click to give us a call today. 920-235-3710

More Information
Triangle Series: TR
Type: Motor Mount Arm
Mount Material: Steel
Strength: Normal Duty
Overall Head / Foot Length: 2.117"
Overall Tail Length: 4.41"
Other Lubrication Apparatus Options Available: No
Mount Material Gauge: 16 Gauge
Finish: Pre-Plated Hot Dipped Galvanized Steel
Other Mount Finish available: Yes
Tapped Hole Available: No
Bearing Fit Options Available: No
Min. Quantity for RFQ: 1000
Band Locking Mechanism: Bump
Band Position: 1.295"
Band Position Type: Imperial
Foot Angle: 110
Foot Radius: 0.687"
Shape: L Shaped
With Cushion: No

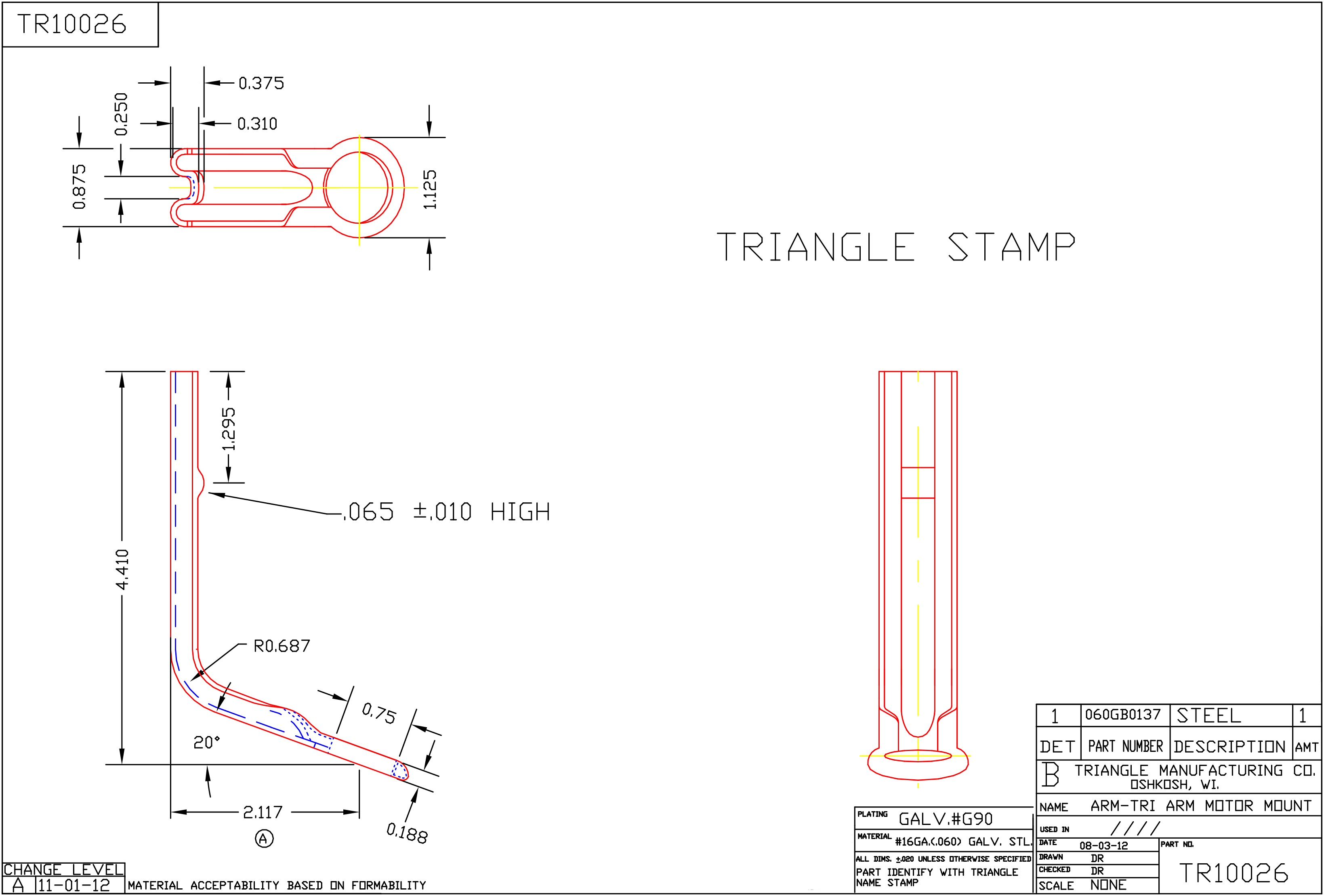

Diagram Drawing File Path: /var/www/html/Application/webroot/pub/media/catalog/product/technical-images/TR10026.jpg
Description

16-Gauge L-Shaped Motor Mount Arm

Triangle's 16-gauge L-shaped motor mount arm is manufactured with bellybands for 42-, 48- and 56-frame size motors. They're used in large centrifugal blowers and fans. For more info on our motor mount arms or to request a quote, click to give us a call today. 920-235-3710

COMPARABLE PRODUCTS

SAME Type

TR Series: Motor Mount Arms

Steel Motor Mount Arms for Belly Band Brackets

Triangle's galvanized steel motor mount arms come in either 3- or 4-arm units with bellybands for 42-, 48- and 56-frame size motors. Compatible with a TR band, they are used in large impeller, propeller or centrifugal blowers or fans. They accommodate motor diameters from 4 1/2" to 7" and blowers 7" to 26" in diameter. Used for a standard residential or commercial HVAC application, these motor mount arms can be custom designed to change the arm angle. These products are typically sold in increments of more than 1,000. View rubber grommet and ferrule options for Triangle's motor mount arms
