    Steel S Shaped Motor Mount Arm, 16 Gauge

    Foot Length 10.687", Standard Notch Locking Mechanism - Heavy Duty

    Part #: TS10158

    TS10158
    TS10158
    Steel S Shaped Motor Mount Arm, 16 Gauge
    Foot Length 10.687", Standard Notch Locking Mechanism - Heavy Duty
    Part #: TS10158
    View Product Specs
    Part #: TS10158
    View Product Specs
    main product photo
    Add to Compare
    Motor Mount Arm TS10158
    PRODUCT SPECIFICATIONS
    Triangle Series
    TS
    Type
    Motor Mount Arm
    Other Lubrication Apparatus Options Available
    No
    Mount Material
    Steel
    Mount Material Gauge
    16 Gauge
    Finish
    Pre-Plated Hot Dipped Galvanized Steel
    Other Mount Finish available
    Yes
    Tapped Hole Available
    No
    Bearing Fit Options Available
    No
    Shape
    S Shaped
    Strength
    Heavy Duty
    Band Locking Mechanism
    Standard Notch
    Band Position
    0.5"
    Foot Angle
    92
    Foot Radius
    0.75"
    Overall Head / Foot Length
    10.687"
    Overall Tail Length
    6.375"

    Stamped Steel S-Shaped Motor Mount Arms

    Triangle supplies S-shaped motor mount arms with an integrated fastener and crimps. Even when repairing a motor in the field, this design allows the mount to stay together. For more details on the value-adds of our S-shaped motor mount arms, click to give us a call today. 920-235-3710

    More Information
    Triangle Series: TS
    Type: Motor Mount Arm
    Mount Material: Steel
    Strength: Heavy Duty
    Overall Head / Foot Length: 10.687"
    Overall Tail Length: 6.375"
    Other Lubrication Apparatus Options Available: No
    Mount Material Gauge: 16 Gauge
    Finish: Pre-Plated Hot Dipped Galvanized Steel
    Other Mount Finish available: Yes
    Tapped Hole Available: No
    Bearing Fit Options Available: No
    Min. Quantity for RFQ: 1000
    Band Locking Mechanism: Standard Notch
    Band Position: 0.5"
    Band Position Type: Imperial
    Foot Angle: 92
    Foot Radius: 0.75"
    Shape: S Shaped
    With Cushion: No

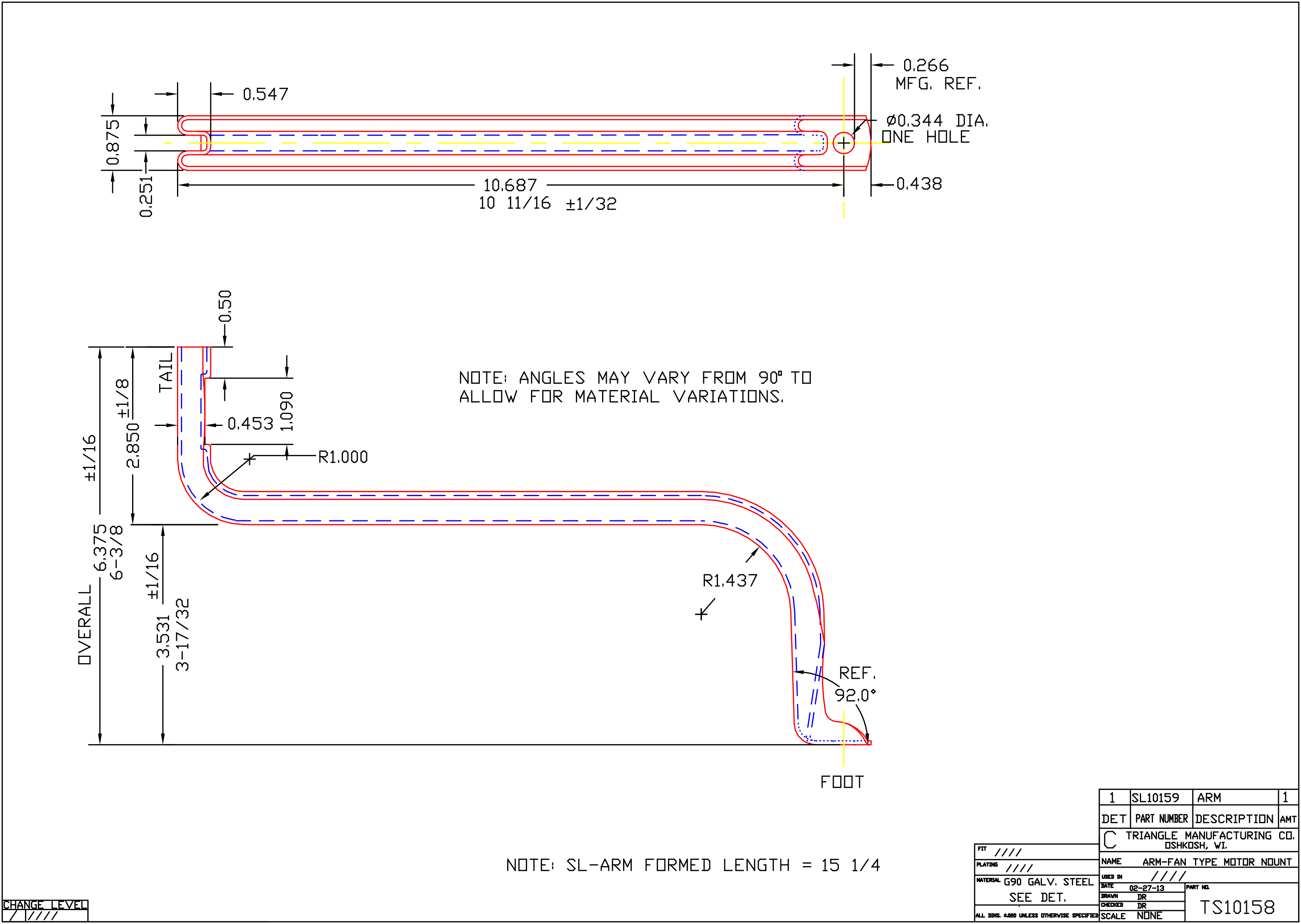

    Diagram Drawing File Path: /var/www/html/Application/webroot/pub/media/catalog/product/technical-images/TS10158.jpg
    Bearing Mount Type With Bearing: No
    Description

    Stamped Steel S-Shaped Motor Mount Arms

    Triangle supplies S-shaped motor mount arms with an integrated fastener and crimps. Even when repairing a motor in the field, this design allows the mount to stay together. For more details on the value-adds of our S-shaped motor mount arms, click to give us a call today. 920-235-3710

    Value proposition TS: Motor Mount Arm

    These motor mount arms are designed with larger curves than our TR/TW Series motor mount arms. The full assembly includes a TS band. Arm lengths can range from 3.2" to 17". Compatible motor diameters range from 4.4" to 6.5", and these motor mount arms are available with three or four arms. Value-added components include an integrated fastener and crimps, which allows the mount to stay together when repairing a motor in the field. You have the option to customize this product when ordering in high volume.
