Steel L Shaped Motor Mount Arm, 16 Gauge

Foot Length 3.344", Bump Locking Mechanism - Heavy Duty

Part #: TW8801B

TW8801B
TW8801B
Steel L Shaped Motor Mount Arm, 16 Gauge
Foot Length 3.344", Bump Locking Mechanism - Heavy Duty
Part #: TW8801B
Part #: TW8801B
Motor Mount Arm TW8801B
PRODUCT SPECIFICATIONS
Triangle Series
TW
Type
Motor Mount Arm
Other Lubrication Apparatus Options Available
No
Mount Material
Steel
Mount Material Gauge
16 Gauge
Finish
Pre-Plated Hot Dipped Galvanized Steel
Other Mount Finish available
Yes
Tapped Hole Available
No
Bearing Fit Options Available
No
Shape
L Shaped
Strength
Heavy Duty
Band Locking Mechanism
Bump
Band Position
1.295"
Foot Angle
90
Foot Radius
1.5"
Overall Head / Foot Length
3.344"
Overall Tail Length
4"

L-Shaped Motor Mount Arms Stamped from Steel

Built for heavy-duty requirements, Triangle Manufacturing's L-shaped motor mount is stamped from 16-gauge steel. Units come with either three or four arms and arm angles can be custom-made to your application. Contact us today for more info on our L-shaped motor mounts.

More Information
Triangle Series: TW
Type: Motor Mount Arm
Mount Material: Steel
Strength: Heavy Duty
Overall Head / Foot Length: 3.344"
Overall Tail Length: 4"
Other Lubrication Apparatus Options Available: No
Mount Material Gauge: 16 Gauge
Finish: Pre-Plated Hot Dipped Galvanized Steel
Other Mount Finish available: Yes
Tapped Hole Available: No
Bearing Fit Options Available: No
Min. Quantity for RFQ: 1000
Band Locking Mechanism: Bump
Band Position: 1.295"
Band Position Type: Imperial
Foot Angle: 90
Foot Radius: 1.5"
Shape: L Shaped
With Cushion: No

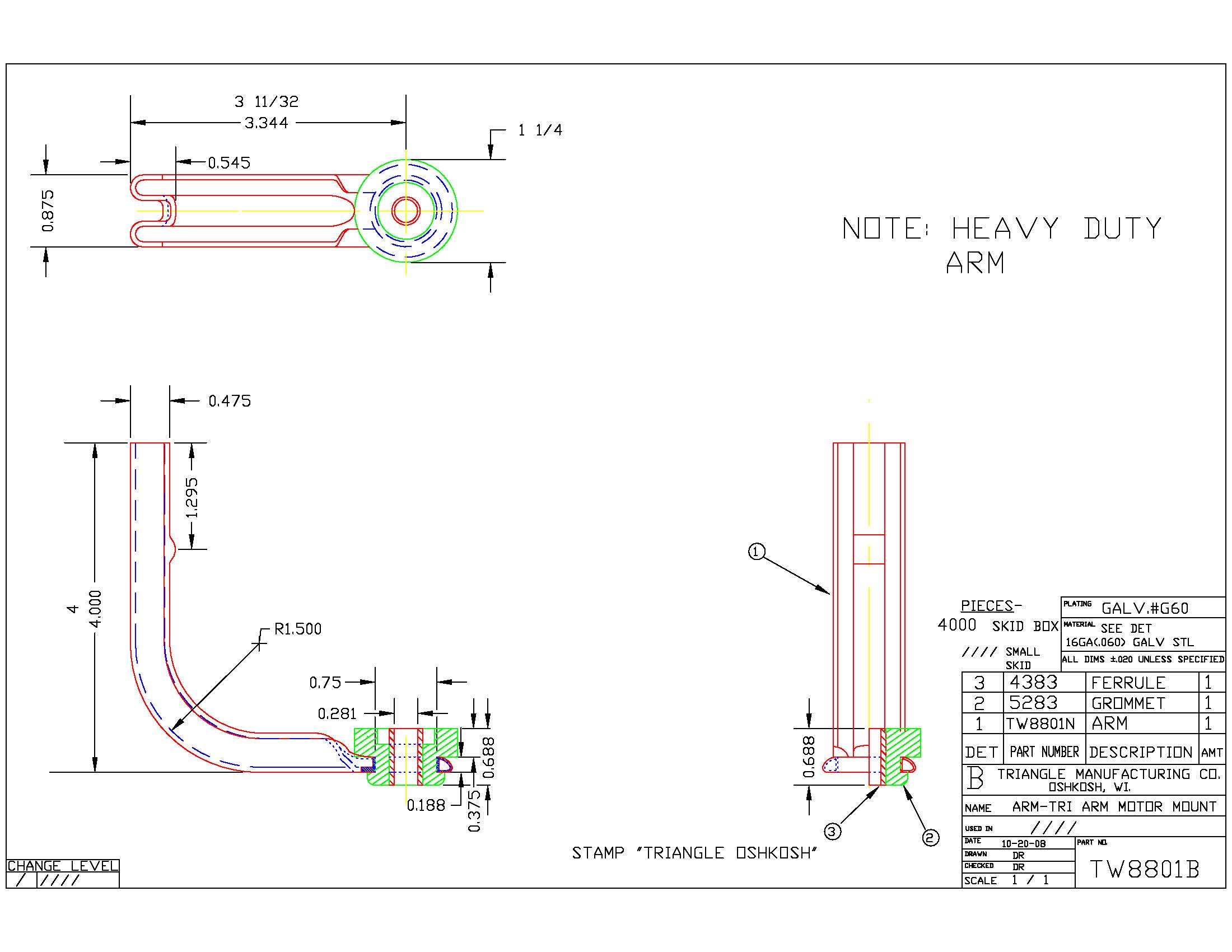

Diagram Drawing File Path: /var/www/html/Application/webroot/pub/media/catalog/product/technical-images/TW8801B.jpg
Description

L-Shaped Motor Mount Arms Stamped from Steel

Built for heavy-duty requirements, Triangle Manufacturing's L-shaped motor mount is stamped from 16-gauge steel. Units come with either three or four arms and arm angles can be custom-made to your application. Contact us today for more info on our L-shaped motor mounts.

COMPARABLE PRODUCTS

SAME Type

TW Series: Motor Mount Arms

Heavy Duty Motor Mount Arms for Belly Band Brackets

If you have a heavy-duty HVAC application, try our galvanized steel motor mount arms for large impeller, propeller or centrifugal blowers or fans. They come in either 3- or 4-arm units, and we can custom design arm angles for your application. These products fit 42-, 48- and 56-frame size motors with motor diameters ranging from 4 1/2" to 7". They're designed for blowers with a diameter range of 7" to 26". Easy to install and flexible, these products are typically sold in high volumes of 1,000 or more. View rubber grommet and ferrule options for Triangle's motor mount arms.
