Static Load Data: Flange Mounted Bearings

Static Load Data: Flange Mounted Bearings

Learn more about static load data for flange mounted bearings.

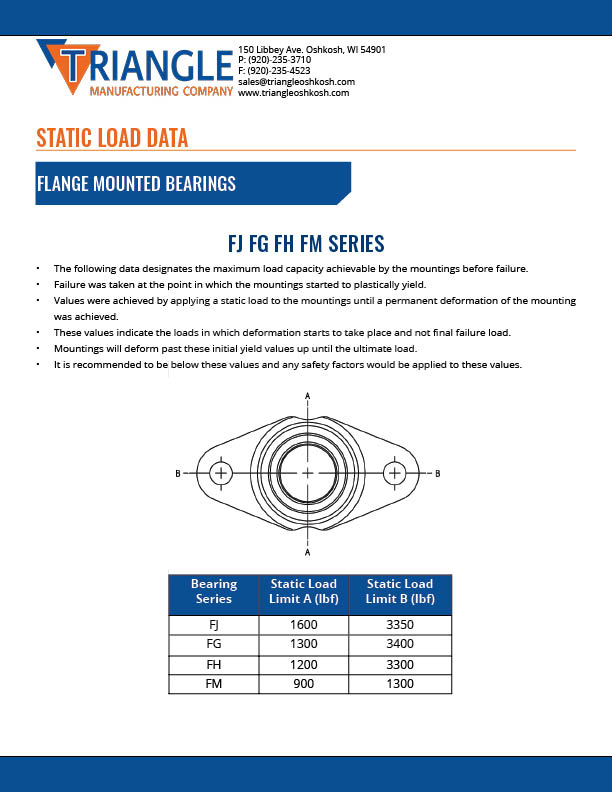

Flange Bearing Load Data

  • The following data designates the maximum load capacity achievable by the mountings before failure.
  • Failure was taken at the point in which the mountings started to plastically yield.
  • Values were achieved by applying a static load to the mountings until a permanent deformation of the mounting was achieved.
  • These values indicate the loads in which deformation starts to take place and not final failure load.
  • Mountings will deform past these initial yield values up until the ultimate load.
  • It is recommended to be below these values and any safety factors would be applied to these values.

Triangle Flange Series Included:
