Triangle 3 Bolt Flange Bearing Types
Triangle, a flange manufacturer based in Wisconsin, offers various 3 bolt flange bearings. Learn about available sizes, applications and more for each 3 bolt flange bearing type.
Heavy Duty 3 Bolt Flange bearings
CB/EE/EF Series
Triangle's heavy duty 3 bolt flange bearings are stamped from 16-gauge galvanized steel. They are manufactured with a self-lubricating spherical plain bearing and are offered with an oil cup or grease fitting.
Applications for Triangle's Heavy Duty 3 Bolt Flange Bearings Include:
- Agriculture Attachments
- Industrial Reels
- Dump Trucks
- Heavy Duty Conveyors

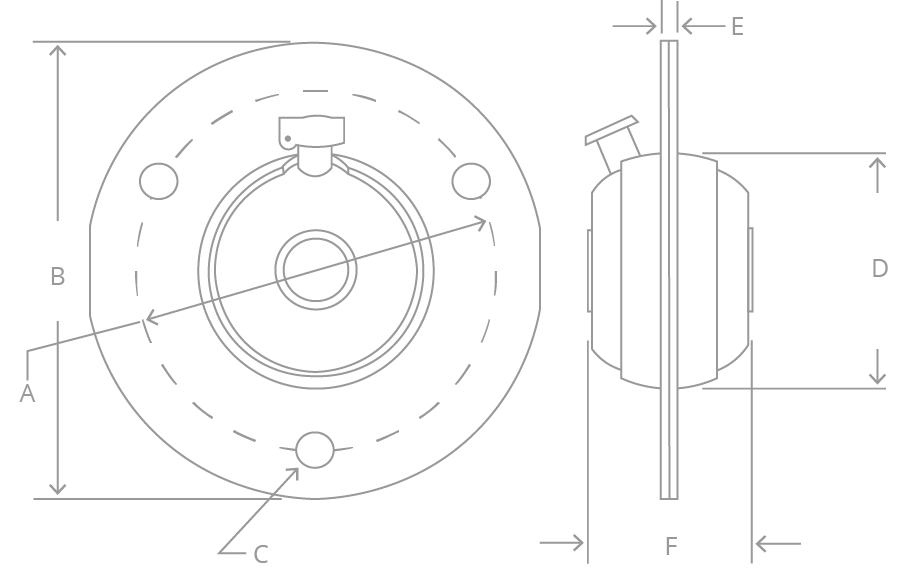

| Oil Cup | Grease Fitting | Shaft Size | A | B | C | D | E | F | Mount Hole Shape |
| CBH8K | *CBH8J | 1/2" | 2.75" | 3.50" | 0.28" | 1.81" | 0.13" | 1.25" | Circular |
| CBH10K | *CBH10J | 5/8" | 2.75" | 3.50" | 0.28" | 1.81" | 0.13" | 1.25" | Circular |
| *CBH12K | CBH12J | 3/4" | 2.75" | 3.50" | 0.28" | 1.81" | 0.13" | 1.25" | Circular |
| *CBH14K | *CBH14J | 7/8" | 2.75" | 3.50" | 0.28" | 1.81" | 0.13" | 1.25" | Circular |
| CBH16K | CBH16J | 1" | 2.75" | 3.50" | 0.28" | 1.81" | 0.13" | 1.25" | Circular |
| EEE12K | *EEE12J | 3/4" | 3.00" | 3.75" | 0.34" | 2.19" | 0.16" | 1.50" | Square |
| *EEE13K | *EEE13J | 13/16" | 3.00" | 3.75" | 0.34" | 2.19" | 0.16" | 1.50" | Square |
| EEE14K | *EEE14J | 7/8" | 3.00" | 3.75" | 0.34" | 2.19" | 0.16" | 1.50" | Square |
| *EEE15K | *EEE15J | 15/16" | 3.00" | 3.75" | 0.34" | 2.19" | 0.16" | 1.50" | Square |
| *EEE16K | EEE16J | 1" | 3.00" | 3.75" | 0.34" | 2.19" | 0.16" | 1.50" | Square |
| EEE18K | *EEE18J | 1 1/8" | 3.00" | 3.75" | 0.34" | 2.19" | 0.16" | 1.50" | Square |
| *EEE19K | *EEE19J | 3.00" | 3.75" | 0.34" | 2.19" | 0.16" | 1.50" | Square | |
| EEE20K | EEE20J | 1 1/4" | 3.00" | 3.75" | 0.34" | 2.19" | 0.16" | 1.50" | Square |
| *EFF19K | *EFF19J | 1 3/16" | 3.56" | 4.44" | 0.41" | 2.69" | 0.19" | 1.75" | Square |
| *EFF20K | EFF20J | 1 1/4" | 3.56" | 4.44" | 0.41" | 2.69" | 0.19" | 1.75" | Square |
| *EFF24K | EFF24J | 1 1/2" | 3.56" | 4.44" | 0.41" | 2.69" | 0.19" | 1.75" | Square |
*These 3 bolt flange bearings are not available on our website. Please contact us if you would like to learn more information.
Medium Duty 3 Bolt Flange Bearings
GB Series
Triangle's medium duty 3 bolt flange bearings are stamped from 14-gauge galvanized steel and are manufactured with a self-lubricating spherical plain bearing. They are available with an oil cup or grease fitting.
Applications for Triangle's Medium Duty 3 Bolt Flange Bearings include:
- Conveyors
- Manufacturing Process Equipment
- Heavy Duty Vehicles
- Farm Attachments
| Shaft Size | Oil Cup | Grease Fitting |
| 1/2" | GBH8A | *GBH8G |
| 5/8" | GBH10A | *GBH10G |
| 3/4" | GBH12A | *GBH12G |
| 7/8" | *GBH14A | GBH14G |
| 1" | GBH16A | *GBH16G |
*These 3 bolt flange bearings are not available on our website. Please contact us if you would like to learn more information.
Benefits of Having Triangle Become your 3 Bolt Flange Bearing Supplier Include:
- Quiet Shaft Rotation: Due to Triangle's spherical plain bearings being self-lubricating, this results in a quieter operation.
- Self-Alignment: Self-aligning bearings come in handy when your shaft is misaligned with the bearing. This will save you time and extra machine costs to fix your application.
- Precision Bores: Triangle's bores are supplied to customer specification, accurately sized and straightened to eliminate variations occurring in press-fitted parts.
If you are interested in any of Triangle's 3 bolt flange bearings, contact us today or call us directly at (920) 235-3710.
