Heavy Duty 4 Bolt Flange Bearings

FD/FE/FF Series

Triangle's heavy duty 4 bolt flange bearings are stamped from 16-gauge galvanized steel and are manufactured with a self-lubricating spherical plain bearing. They are available with an oil cup or grease fitting

Applications for Triangle's Heavy Duty 4 Bolt Flange Bearings Include:

  • Agriculture Equipment
  • Industrial Conveyors
  • Heavy Duty Vehicles
  • Manufacturing Equipment

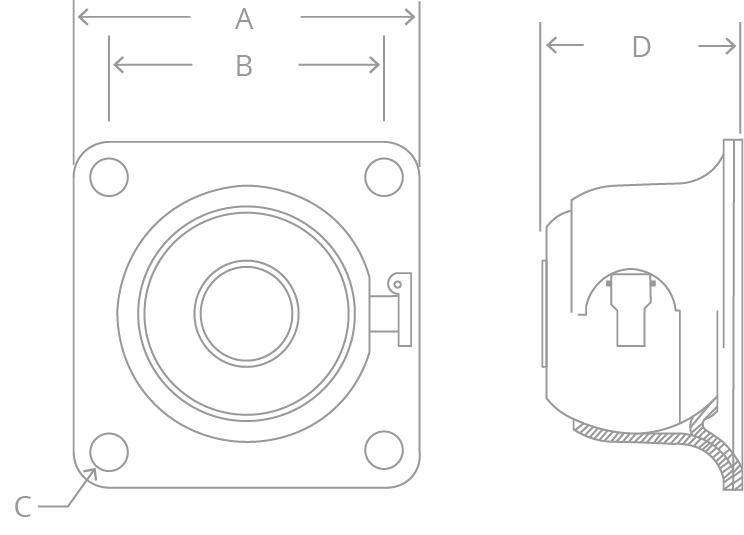

Oil Cup Grease Fitting Shaft Size A B C D
FDH8A FDH8G 1/2" 1.94" 2.44" 0.26" 1.41"
FDH10A FDH10G 5/8" 1.94" 2.44" 0.26" 1.41"
FDH12A FDH12G 3/4" 1.94" 2.44" 0.26" 1.41"
FDH14A FDH14G 7/8" 1.94" 2.44" 0.26" 1.41"
FDH16A FDH16G 1" 1.94" 2.44" 0.26" 1.41"
FEE12A FEE12G 3/4" 2.31" 3.00" 0.41" 1.56"
FEE13A FEE13G 13/16" 2.31" 3.00" 0.41" 1.56"
FEE14A FEE14G 7/8" 2.31" 3.00" 0.41" 1.56"
FEE15A FEE15G 15/16" 2.31" 3.00" 0.41" 1.56"
FEE16A FEE16G 1" 2.31" 3.00" 0.41" 1.56"
FEE18A FEE18G 1 1/8" 2.31" 3.00" 0.41" 1.56"
FEE19A FEE19G 1 3/16" 2.31" 3.00" 0.41" 1.56"
FEE20A FEE20G 1 1/4" 2.31" 3.00" 0.41" 1.56"
FFF18A FFF18G 1 1/8" 2.75" 3.62" 0.41" 1.82"
FFF19A FFF19G 1 3/16" 2.75" 3.62" 0.41" 1.82"
FFF20A FFF20G 1 1/4" 2.75" 3.62" 0.41" 1.82"
FFF24A FFF24G 1 1/2" 2.75" 3.62" 0.41" 1.82"

Cushioned 4 Bolt Flange Bearings

Triangle's cushioned 4 bolt flange bearings are stamped from 16-gauge galvanized steel. They are manufactured with a self-lubricating spherical plain bearing and rubber cushion. Rubber cushions help reduce sound and vibration, dissipate static electricity and resist oils, grease and aging.

Applications for Triangle's Cushioned 4 Bolt Flange Bearings

  • Air Handlers

Oil Cup Shaft Size A B C D
3668 1 1/4" 3.00" 2.313" 0.406" 1.438"
7234* 1/2" 2.438" 1.844" 0.281" 1.250"

*7234 is not available on our website. Please contact us for more information on this part number.

Benefits of Having Triangle Become your 4 Bolt Flange Bearing Supplier Include:

  • Quiet Shaft Rotation: Due to Triangle's spherical plain bearings being self-lubricating, this results in a quieter operation.
  • Self-Alignment: Self-aligning bearings come in handy when your shaft is misaligned with the bearing. This will save you time and extra machine costs to fix your application.
  • Precision Bores: Triangle's bores are supplied to customer specification, accurately sized and straightened to eliminate variations occurring in press-fitted parts.
