Triangle Lazy Susan Bearing FAQ - Commonly Asked Questions with Answers

Q: HOW DO I KNOW WHICH SIZE LAZY SUSAN BEARING IS BEST FOR MY APPLICATION?

A: Triangle manufactures 5 different size lazy susan bearings and each is capable of supporting a different weight and turntable diameter.

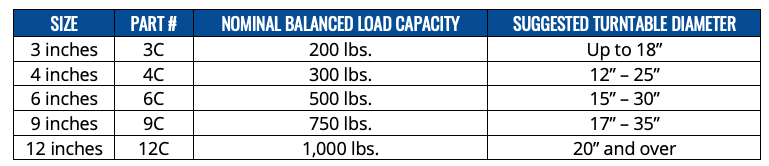

Lazy Susan Bearing Chart

Q: HOW DO I KNOW WHICH SIDE IS THE TOP WHEN MOUNTING MY LAZY SUSAN?

A: Triangle’s Lazy Susan bearing can be mounted with either side facing the top and it will not have any effect on the functionality of the bearing. Learn how to install a Lazy Susan bearing.

Q: CAN I MOUNT MY LAZY SUSAN BEARING LATERALLY?

A: Unfortunately, Triangle's Lazy Susan Bearings are only designed to have the load directly above the part. We do not reccomend mounting your Lazy Susan Bearing laterally.

Q: WHAT TYPE OF SCREWS SHOULD I USE TO MOUNT MY LAZY SUSAN BEARING?

A: For our 3 inch, 4 inch, and 6 inch Lazy Susan bearings, Triangle recommends drilling a 5/32” hole and using a #6 self-tapping screw. For our 9 inch and 12 inch Lazy Susan bearings, we recommend drilling a 3/16” hole and using a #8 self-tapping screw.

Q: CAN MY LAZY SUSAN BEARING  BE USED OUTDOORS?

A: Triangle’s lazy susan bearings are made from galvanized steel, which has a layer of zinc coating. This helps to prevent premature rust and corrosion allowing for protection during exposure to outdoor elements. In addition to the standard galvanization, Triangle also offers additional zinc plating and black powder coat options as well as stainless steel ball bearings. View custom options for Triangle's Lazy Susan bearings.

Q: WHAT SHOULD I DO IF MY LAZY SUSAN BEARING GETS DIRTY AND STOPS WORKING?

A: Should your Lazy Susan bearing get dirty or start turning more difficult, simply flush thoroughly with hot soapy water, rinse, and dry. If needed, a small amount of non-detergent oil or lithium ion grease can be applied using a syringe or Q-tip.

Q: WHAT IF I NEED MY DISPLAY TO PAUSE OR STOP AT A CERTAIN PLACE?

A: If you need your display to pause, Triangle offers a “detent”. This will cause the display to pause at a certain degree, and then with a small amount of force, you can continue to turn the Lazy Susan bearing. To have your Lazy Susan stop at a certain place, Triangle’s offers a “stop”. This allows you to rotate the Lazy Susan and once it hits the stop, it can only be rotated back in the other direction.


For more questions about Triangle's Lazy Susan bearings view our product page or contact us today.
