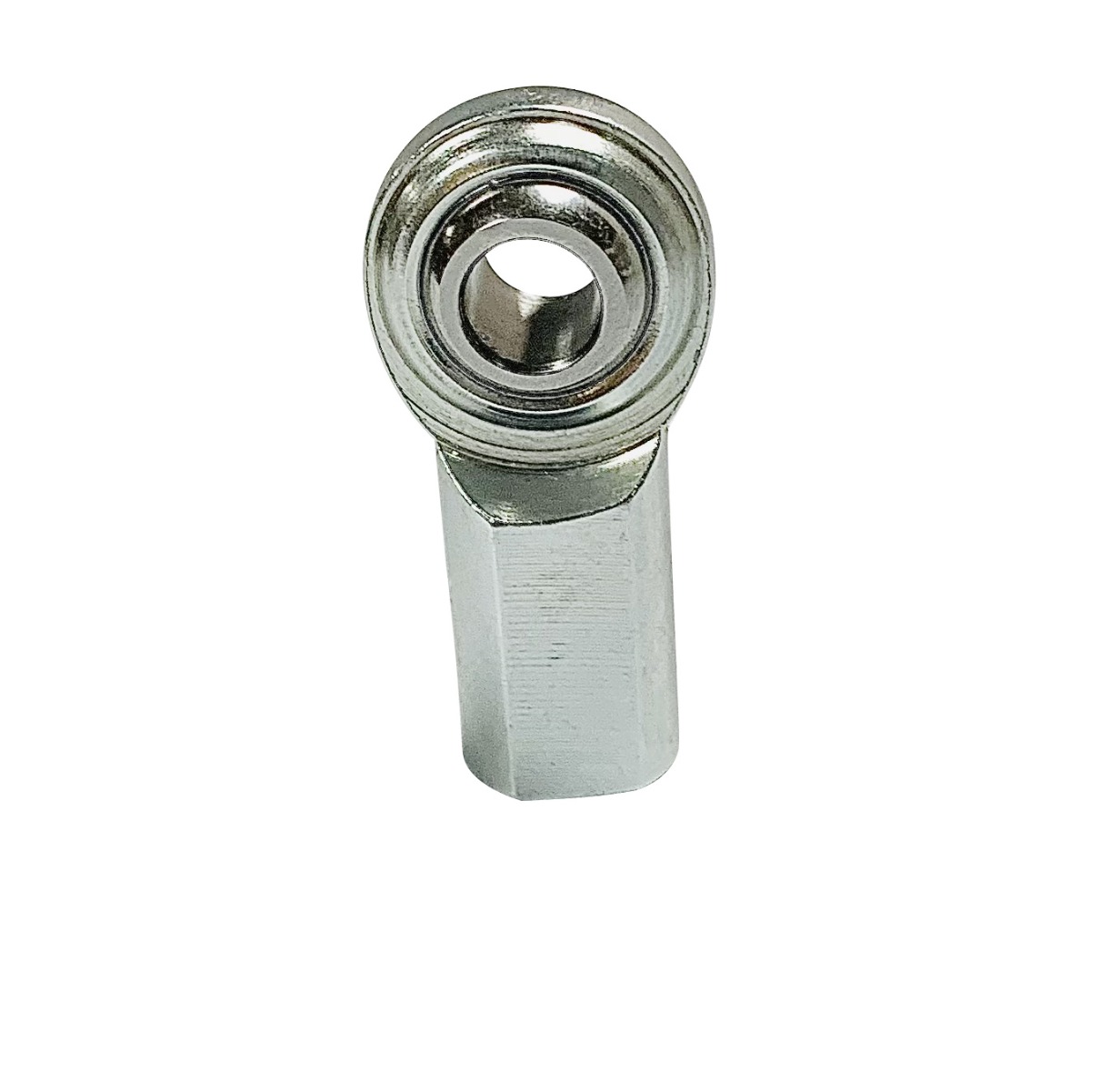

Carbon Steel Right Hand Thread Rod End Heim Joint - 5/16-24"

Bearing Ball, 5/16" Bore

Part #: R05L11463

R05L11463
R05L11463
Carbon Steel Right Hand Thread Rod End Heim Joint - 5/16-24"
Bearing Ball, 5/16" Bore
Part #: R05L11463
Part #: R05L11463
Right Hand Thread Rod End Heim Joint R05L11463
PRODUCT SPECIFICATIONS
Triangle Series
R05
Type
Right Hand Thread Rod End Heim Joint
Shaft Size (Bore ID)
5/16"
Inside Diameter Lower Tolerance
0.313"
Inside Diameter Upper Tolerance
0.315"
Other Lubrication Apparatus Options Available
No
Mount Material
Carbon Steel
Finish
Zinc Plate with Yellow Trivalent
Other Mount Finish available
No
Tapped Hole Available
No
Bearing Fit Options Available
No
Thread Diameter
5/16-24"
Thread Length
1.833"
Machined Process
Machined
Thread Cut
5/16-24 UNF / 5/16-24 UNF
More Information
Triangle Series: R05
Type: Right Hand Thread Rod End Heim Joint
Shaft Size (Bore ID): 5/16"
Inside Diameter Lower Tolerance: 0.313"
Inside Diameter Upper Tolerance: 0.315"
Mount Material: Carbon Steel
Other Lubrication Apparatus Options Available: No
Finish: Zinc Plate with Yellow Trivalent
Other Mount Finish available: No
Tapped Hole Available: No
Bearing Fit Options Available: No
With Cushion: No
Diagram Drawing File Path: /var/www/html/Application/webroot/pub/media/catalog/product/technical-images/r05l11463_drawing.pdf.jpg
Thread Diameter: 5/16-24"
Thread Length: 1.833"
Bearing Insert Material: 52100 (Hard Steel)
Machined Process: Machined
Bearing Mount Type With Bearing: No
Rod End Bearing Height: 0.437"
Thread Cut: 5/16-24 UNF / 5/16-24 UNF
