Hanger Bearings

Specialty hanger bearings made in the USA & manufactured in high quantities

Triangle manufactures specialty hanger bearings in the USA to fit a wide range of applications for conveyor belts, assembly lines, large fans, industrial grinders, revolving drums, marine drive shafts, agricultural equipment and more.

Utilized when rigid support is required for long shafts.

View as Table List

10 Items

per page
Set Descending Direction
Part
Number
Add to
Compare
Band Fastener Size Quantity Request
Quote
DKE13J Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 3 Bolt Hanger Bearing, 13 Gauge - 13/16"

with Grease Fitting (Zerk), Center to Center 4", Overall Length 9.875", Bearing Width 1.5", Spherical Diameter 2"
Part #: DKE13J
PRODUCT SPECIFICATIONS
Triangle Series
DK
Type
Hanger Bearing with Bushing
Shaft Size (Bore ID)
13/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease

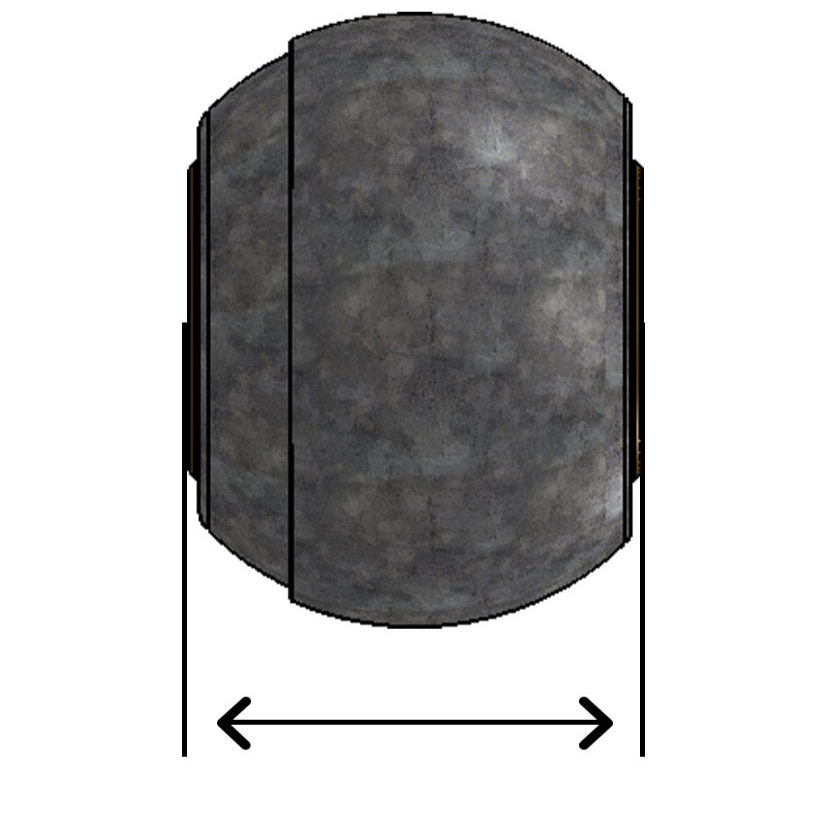

Bearing Width
1.5"
Number of Mount Holes
3
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
9.875"
Mount Width
2.5"
Mount Hole Center to Center
4"
Mount Socket Diameter
3"
View All Product Specs
DKE15J Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 3 Bolt Hanger Bearing, 13 Gauge - 15/16"

with Grease Fitting (Zerk), Center to Center 4", Overall Length 9.875", Bearing Width 1.5", Spherical Diameter 2"
Part #: DKE15J
PRODUCT SPECIFICATIONS
Triangle Series
DK
Type
Hanger Bearing with Bushing
Shaft Size (Bore ID)
15/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
3
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
9.875"
Mount Width
2.5"
Mount Hole Center to Center
4"
Mount Socket Diameter
3"
View All Product Specs
DKE12K Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 3 Bolt Hanger Bearing, 13 Gauge - 3/4"

with Oil Cup, Center to Center 4", Overall Length 9.875", Bearing Width 1.5", Spherical Diameter 2"
Part #: DKE12K
PRODUCT SPECIFICATIONS
Triangle Series
DK
Type
Hanger Bearing with Bushing
Shaft Size (Bore ID)
3/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.5"
Number of Mount Holes
3
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
9.875"
Mount Width
2.5"
Mount Hole Center to Center
4"
Mount Socket Diameter
3"
View All Product Specs
DKE12J Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 3 Bolt Hanger Bearing, 13 Gauge - 3/4"

with Grease Fitting (Zerk), Center to Center 4", Overall Length 9.875", Bearing Width 1.5", Spherical Diameter 2"
Part #: DKE12J
PRODUCT SPECIFICATIONS
Triangle Series
DK
Type
Hanger Bearing with Bushing
Shaft Size (Bore ID)
3/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
3
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
9.875"
Mount Width
2.5"
Mount Hole Center to Center
4"
Mount Socket Diameter
3"
View All Product Specs
DKE14J Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 3 Bolt Hanger Bearing, 13 Gauge - 7/8"

with Grease Fitting (Zerk), Center to Center 4", Overall Length 9.875", Bearing Width 1.5", Spherical Diameter 2"
Part #: DKE14J
PRODUCT SPECIFICATIONS
Triangle Series
DK
Type
Hanger Bearing with Bushing
Shaft Size (Bore ID)
7/8"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
3
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
9.875"
Mount Width
2.5"
Mount Hole Center to Center
4"
Mount Socket Diameter
3"
View All Product Specs
DKE20J Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 3 Bolt Hanger Bearing, 13 Gauge - 1 1/4"

with Grease Fitting (Zerk), Center to Center 4", Overall Length 9.875", Bearing Width 1.5", Spherical Diameter 2"
Part #: DKE20J
PRODUCT SPECIFICATIONS
Triangle Series
DK
Type
Hanger Bearing with Bushing
Shaft Size (Bore ID)
1 1/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
3
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
9.875"
Mount Width
2.5"
Mount Hole Center to Center
4"
Mount Socket Diameter
3"
View All Product Specs
DKE19J Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 3 Bolt Hanger Bearing, 13 Gauge - 1 3/16"

with Grease Fitting (Zerk), Center to Center 4", Overall Length 9.875", Bearing Width 1.5", Spherical Diameter 2"
Part #: DKE19J
PRODUCT SPECIFICATIONS
Triangle Series
DK
Type
Hanger Bearing with Bushing
Shaft Size (Bore ID)
1 3/16"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
3
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
9.875"
Mount Width
2.5"
Mount Hole Center to Center
4"
Mount Socket Diameter
3"
View All Product Specs
DKE16J Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 3 Bolt Hanger Bearing, 13 Gauge - 1"

with Grease Fitting (Zerk), Center to Center 4", Overall Length 9.875", Bearing Width 1.5", Spherical Diameter 2"
Part #: DKE16J
PRODUCT SPECIFICATIONS
Triangle Series
DK
Type
Hanger Bearing with Bushing
Shaft Size (Bore ID)
1"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2"
Lubrication Apparatus
Grease Fitting (Zerk)
Type of Lubricant
Grease
Bearing Width
1.5"
Number of Mount Holes
3
Mount Material
Steel
Mount Material Gauge
13 Gauge
Overall Length
9.875"
Mount Width
2.5"
Mount Hole Center to Center
4"
Mount Socket Diameter
3"
View All Product Specs
3954 Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 3 Bolt Rubber Mounted Hanger Bearing with Bushing with Cushion, 16 Gauge - 1 1/4"

with Oil Cup, Center to Center 2.25", Overall Length 5.281", Bearing Width 1.75", Spherical Diameter 2.5"
Part #: 3954 IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
H39
Type
Rubber Mounted Hanger Bearing with Bushing
Shaft Size (Bore ID)
1 1/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2.5"
Lubrication Apparatus
Oil Cup
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.75"
Number of Mount Holes
3
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
5.281"
Mount Width
3.25"
Mount Hole Center to Center
2.25"
Mount Socket Diameter
2.375"
With Cushion
Yes
View All Product Specs
3953 Qty:

Stamped Steel Bearing Ball Sintered Bronze Bushing 3 Bolt Rubber Mounted Hanger Bearing with Bushing with Cushion, 16 Gauge - 1 1/4"

with Lube Fitting, Center to Center 2.25", Overall Length 5.281", Bearing Width 1.75", Spherical Diameter 2.5"
Part #: 3953 IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
Triangle Series
H39
Type
Rubber Mounted Hanger Bearing with Bushing
Shaft Size (Bore ID)
1 1/4"
Bearing Insert Type
Bearing Ball with Bushing
Bushing Material
Sintered Bronze
Bearing Ball Material
Stamped Steel
Bearing Spherical Diameter
2.5"
Lubrication Apparatus
Lube Fitting
Type of Lubricant
SAE30 Non-Detergent Oil
Bearing Width
1.75"
Number of Mount Holes
3
Mount Material
Steel
Mount Material Gauge
16 Gauge
Overall Length
5.281"
Mount Width
3.25"
Mount Hole Center to Center
2.25"
Mount Socket Diameter
2.375"
With Cushion
Yes
View All Product Specs
