Steel Spherical Rod End Bearing Heim Joint - 3/8-24
Sintered Bronze Bearing Ball, Steel Race, 3/8" Bore
Part #: R06L11078
Steel Spherical Rod End Bearing Heim Joint - 3/8-24
Sintered Bronze Bearing Ball, Steel Race, 3/8" Bore
Part #: R06L11078
Part #: R06L11078
PRODUCT SPECIFICATIONS
- Triangle Series
- R06
- Type
- Spherical Rod End Bearing Heim Joint
- Shaft Size (Bore ID)
- 3/8"
- Inside Diameter Lower Tolerance
- 0.377"
- Inside Diameter Upper Tolerance
- 0.394"
- Bearing Insert Type
- Bearing Ball without Bushing
- Bearing Ball Material
- Sintered Bronze
- Other Lubrication Apparatus Options Available
- No
- Race Material
- Steel
- Mount Method
- Threaded
- Mount Material
- Steel
- Mount Material Gauge
- 14 Gauge
- Overall Length
- 2.6"
- Base To Center
- 2.02"
- Finish
- Zinc Plate and Clear Trivalent Dip
- Other Mount Finish available
- Yes
- Tapped Hole Available
- No
- Thread Type
- Female Left Hand Thread
- Bearing Fit
- Light Drag
- Bearing Fit Options Available
- Yes
- Thread Diameter
- 3/8-24
- Thread Length
- 2.5945"
- Machined Process
- Stamped
- Thread Cut
- 3/8-24 UNF / 3/8-24 UNF
Left Hand Shouldered Spherical Rod End Bearing
Triangle's rod ends can be manufactured with a sintered bronze shouldered spherical plain bearing and galvanized steel race.
Advantages of a Shouldered Bearing:
- Eliminates the need for a washer
- Reduced cost
| Triangle Series: | R06 |
| Type: | Spherical Rod End Bearing Heim Joint |
| Shaft Size (Bore ID): | 3/8" |
| Inside Diameter Lower Tolerance: | 0.377" |
| Inside Diameter Upper Tolerance: | 0.394" |
| Bearing Insert Type: | Bearing Ball without Bushing |
| Bushing Material: | Sintered Bronze |
| Bearing Ball Material: | Sintered Bronze |
| Mount Material: | Steel |
| Overall Length: | 2.6" |
| Other Lubrication Apparatus Options Available: | No |
| Race Material: | Steel |
| Mount Method: | Threaded |
| Mount Material Gauge: | 14 Gauge |
| Finish: | Zinc Plate and Clear Trivalent Dip |
| Other Mount Finish available: | Yes |
| Tapped Hole Available: | No |
| Bearing Fit: | Light Drag |
| Bearing Fit Options Available: | Yes |
| Min. Quantity for RFQ: | 1000 |
| With Cushion: | No |

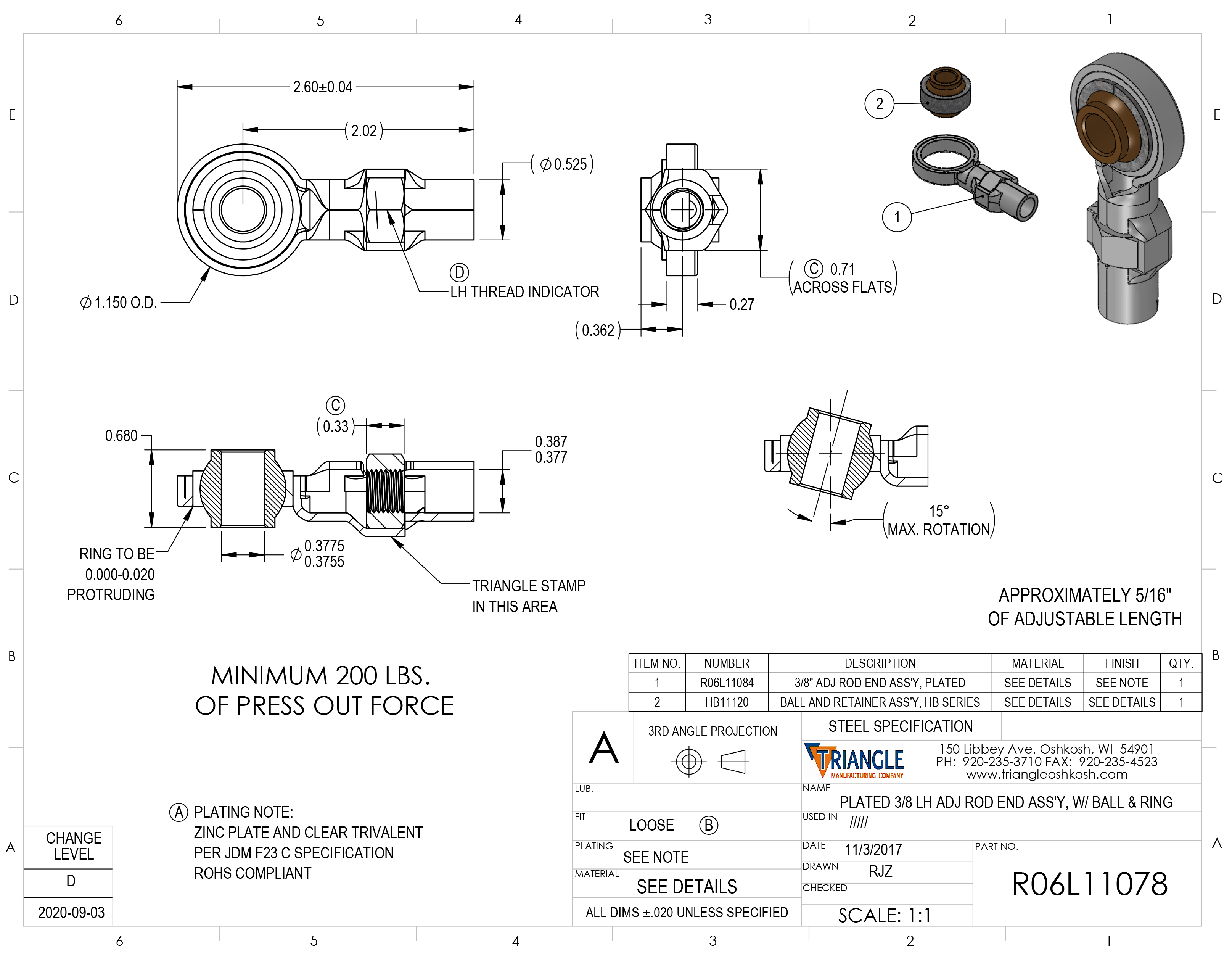

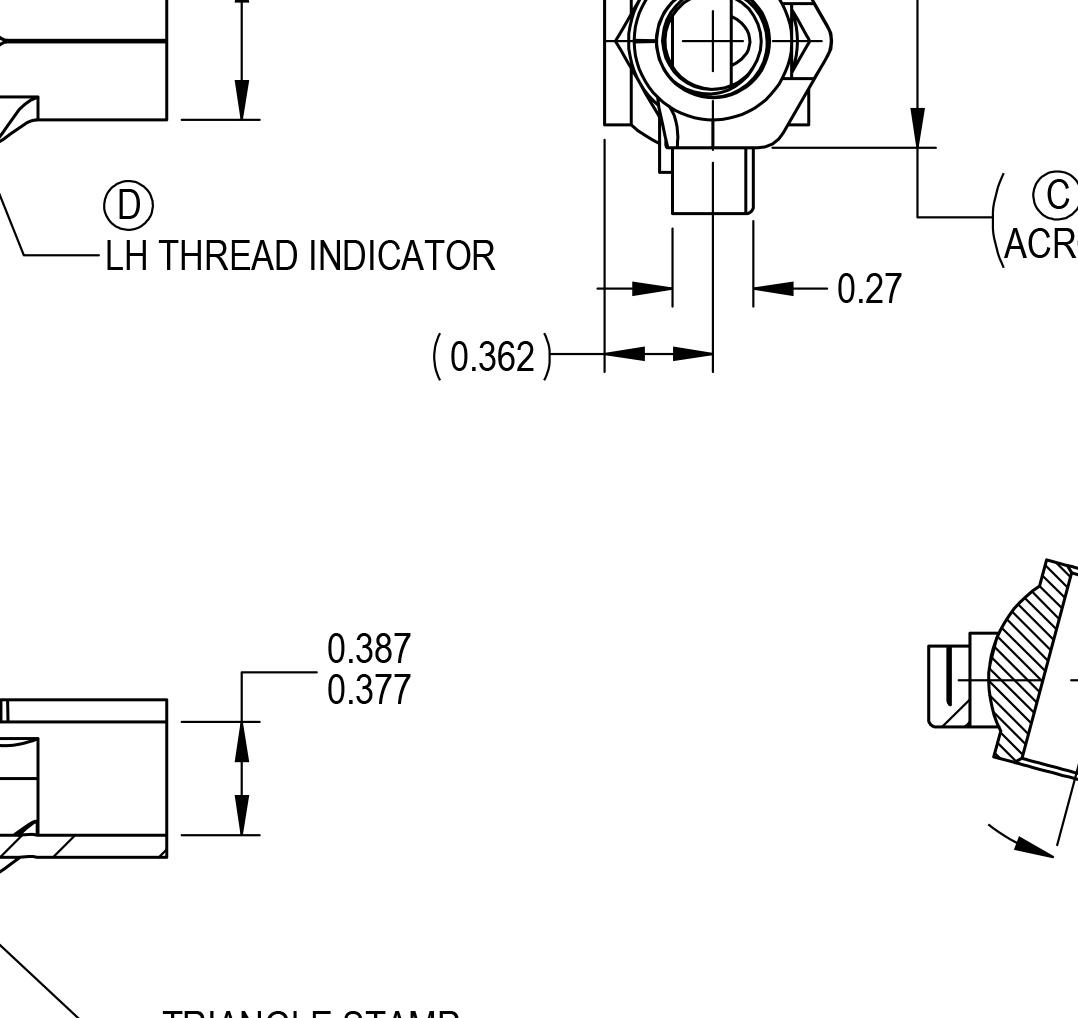

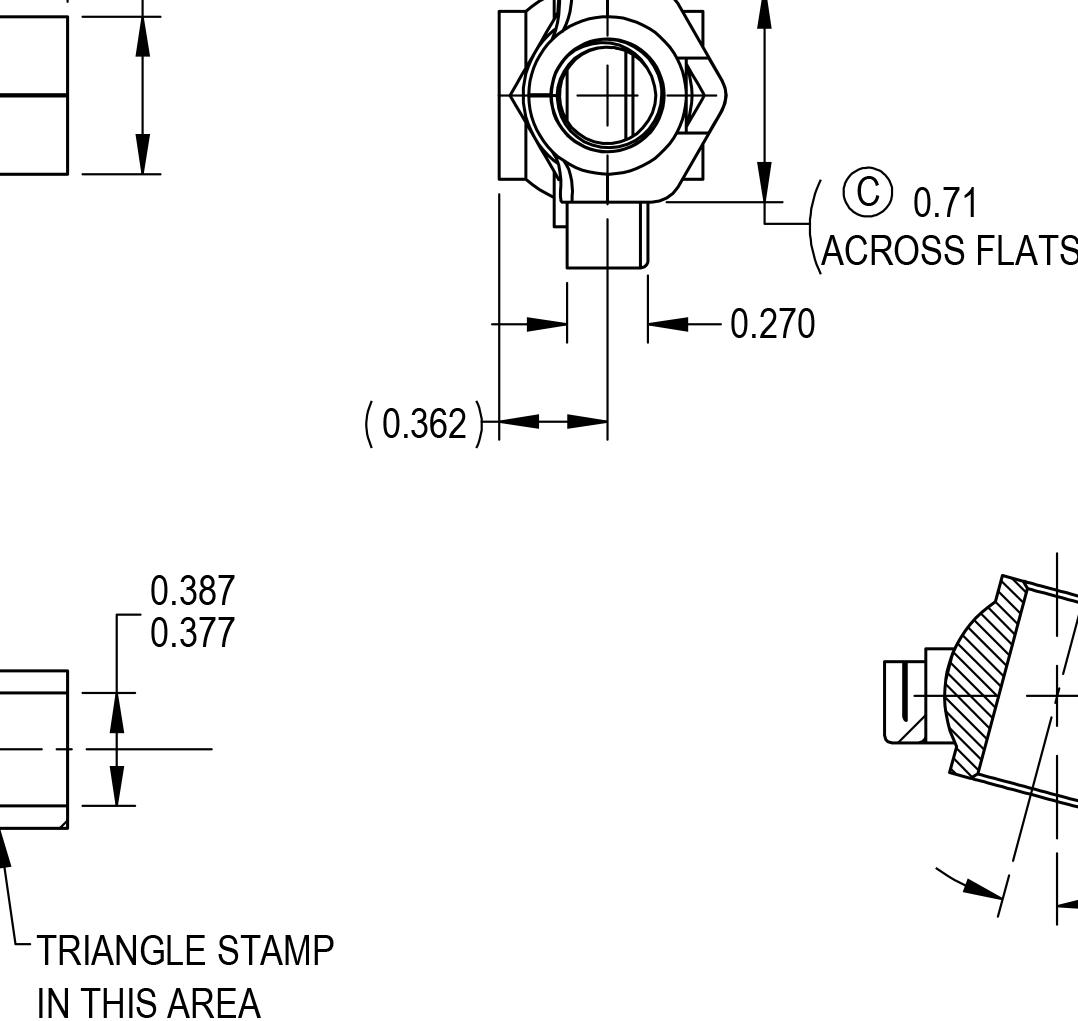

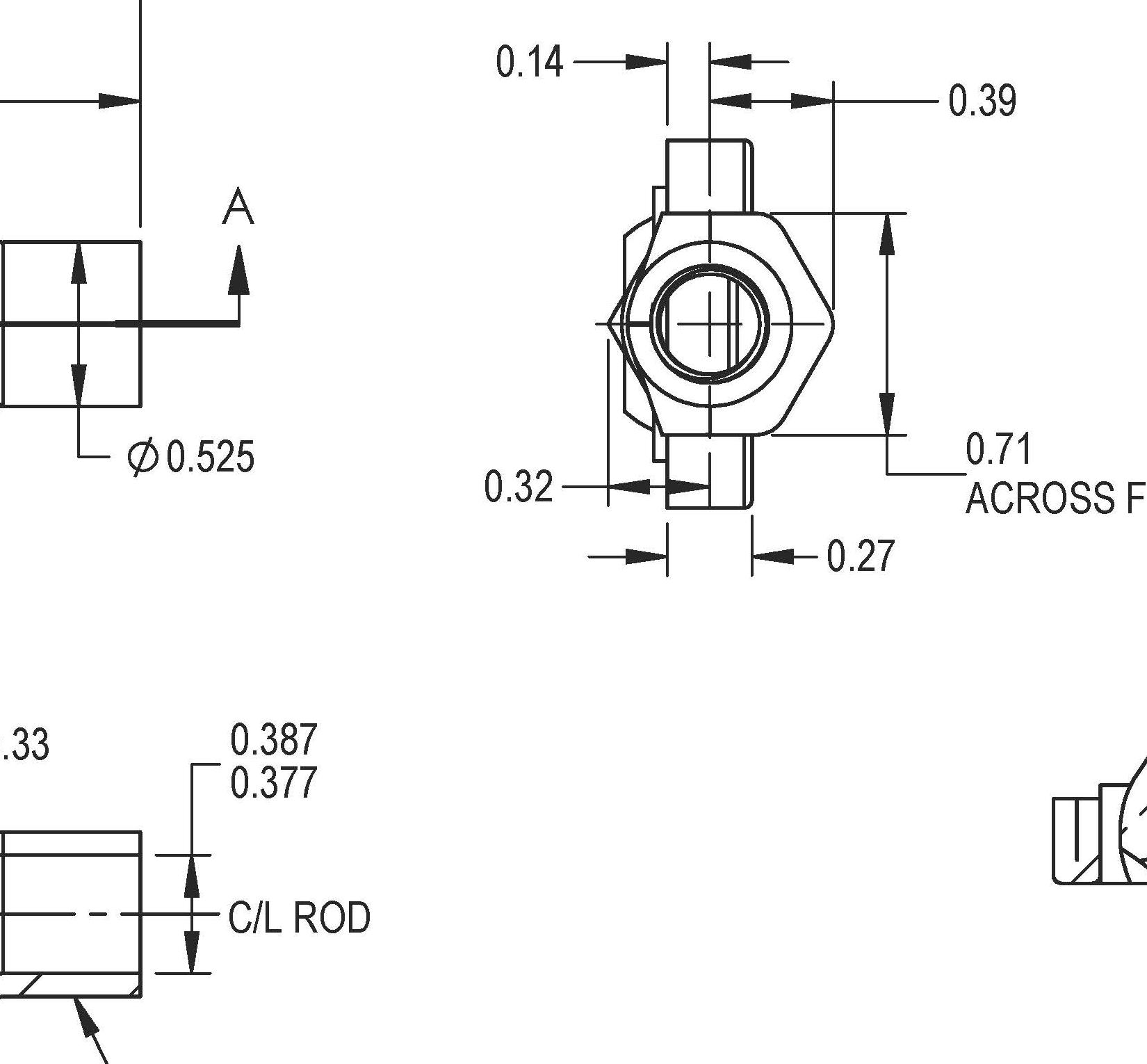

| Diagram Drawing File Path: | /var/www/html/Application/webroot/pub/media/catalog/product/technical-images/R06L11078.jpg |
| Base To Center: | 2.02" |
| Thread Type: | Female Left Hand Thread |
| Base To Center Type: | Imperial |
| Thread Diameter: | 3/8-24 |
| Thread Length: | 2.5945" |
| Bearing Insert Material: | Shouldered Sintered Bronze |
| Machined Process: | Stamped |
| Bearing Mount Type With Bearing: | No |
| Rod End Bearing Height: | 0.68" |
| Thread Cut: | 3/8-24 UNF / 3/8-24 UNF |
Description
Left Hand Shouldered Spherical Rod End Bearing
Triangle's rod ends can be manufactured with a sintered bronze shouldered spherical plain bearing and galvanized steel race.
Advantages of a Shouldered Bearing:
- Eliminates the need for a washer
- Reduced cost
Value proposition R06 Spherical Rod End Bearing Heim Joint
These spherical rod end heim joints are a 3/8" female thread. Available bore sizes are 7/16" and 3/8". They are stamped from 14 gauge galvanized steel. Ball and race options include sintered bronze with galvanized steel race, chrome plated steel ball with brass race and chrome plated steel ball with PTFE lined race. These rod ends are available as is or as a full assembly. Custom options are available at high volumes.
