Steel Motor Mount Band, 16 Gauge
3 arms, Overall Length 14.625", Band Fastener Size 0.25"
- Triangle Series
- TR
- Type
- Motor Mount Band
- Other Lubrication Apparatus Options Available
- No
- Mount Material
- Steel
- Mount Material Gauge
- 16 Gauge
- Overall Length
- 14.625"
- Finish
- Pre-Plated Hot Dipped Galvanized Steel
- Other Mount Finish available
- Yes
- Tapped Hole Available
- No
- Bearing Fit Options Available
- No
- Number of Arms
- 3
- Band Fastener Size
- 0.25"
- Band Spacing
- 60/60/120/120
- Motor Diameter
- 4.9"
- Motor Nema
- Nema 42
16-Gauge Steel Motor Mount Bands
Triangle's TR-series motor mount bands are commonly used in large impeller, propeller or centrifugal blowers and are available with three or four TR arms. Click to give us a call for more details on our steel motor mount bands. 920-235-3710
| Triangle Series: | TR |
| Type: | Motor Mount Band |
| Mount Material: | Steel |
| Overall Length: | 14.625" |
| Number of Arms: | 3 |
| Band Spacing: | 60/60/120/120 |
| Motor Diameter: | 4.9" |
| Other Lubrication Apparatus Options Available: | No |
| Mount Material Gauge: | 16 Gauge |
| Finish: | Pre-Plated Hot Dipped Galvanized Steel |
| Other Mount Finish available: | Yes |
| Tapped Hole Available: | No |
| Bearing Fit Options Available: | No |
| Min. Quantity for RFQ: | 1000 |
| Band Fastener Size: | 0.25" |
| Motor Nema: | Nema 42 |
| With Cushion: | No |

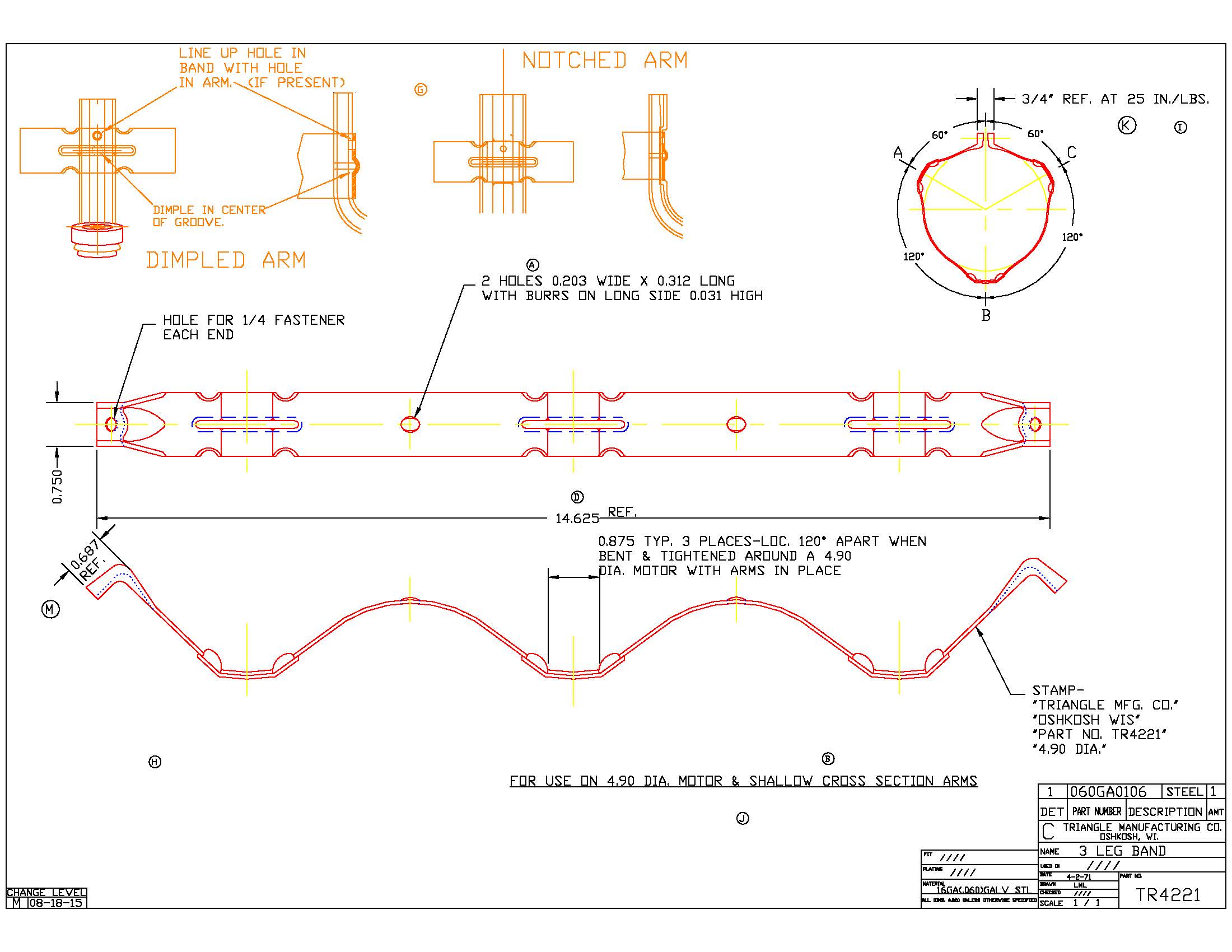

| Diagram Drawing File Path: | /var/www/html/Application/webroot/pub/media/catalog/product/technical-images/TR4221.jpg |
| Bearing Mount Type With Bearing: | No |
16-Gauge Steel Motor Mount Bands
Triangle's TR-series motor mount bands are commonly used in large impeller, propeller or centrifugal blowers and are available with three or four TR arms. Click to give us a call for more details on our steel motor mount bands. 920-235-3710
Value proposition TR: Motor Mount Band
These mount bands are designed to be compatible with motor diameters ranging from 4.5" - 7". The full assembly include 3 TR arms. These brackets are used in large impeller, propeller or centrifugal blowers. Customization is available with high-quantity orders. Motor mount arms and bands are shipped as a knocked-down package, keeping shipping costs and storage space to a minimum. Triangle can also supply a very low-cost air-operated assembly fixture so that the motor mount can be assembled and mounted on the motor in the same operation, which is often faster than a preassembled mount.
