Steel Motor Mount Band, 16 Gauge
4 arms, Overall Length 17.125", Band Fastener Size 0.25"
- Triangle Series
- TS
- Type
- Motor Mount Band
- Other Lubrication Apparatus Options Available
- No
- Mount Material
- Steel
- Mount Material Gauge
- 16 Gauge
- Overall Length
- 17.125"
- Finish
- Pre-Plated Hot Dipped Galvanized Steel
- Other Mount Finish available
- Yes
- Tapped Hole Available
- No
- Bearing Fit Options Available
- No
- Number of Arms
- 4
- Band Fastener Size
- 0.25"
- Band Spacing
- 90/90/90/90
- Motor Diameter
- 5.6"
- Motor Nema
- Nema 48
Stamped Steel Motor Mount Bands
With three TS arms, Triangle Manufacturing's motor belly band brackets are designed for motors with 4.4" to 6.5" diameters. Learn more about our TS-series motor mount bands today by contacting our team.
| Triangle Series: | TS |
| Type: | Motor Mount Band |
| Mount Material: | Steel |
| Overall Length: | 17.125" |
| Number of Arms: | 4 |
| Band Spacing: | 90/90/90/90 |
| Motor Diameter: | 5.6" |
| Other Lubrication Apparatus Options Available: | No |
| Mount Material Gauge: | 16 Gauge |
| Finish: | Pre-Plated Hot Dipped Galvanized Steel |
| Other Mount Finish available: | Yes |
| Tapped Hole Available: | No |
| Bearing Fit Options Available: | No |
| Min. Quantity for RFQ: | 1000 |
| Band Fastener Size: | 0.25" |
| Motor Nema: | Nema 48 |
| With Cushion: | No |

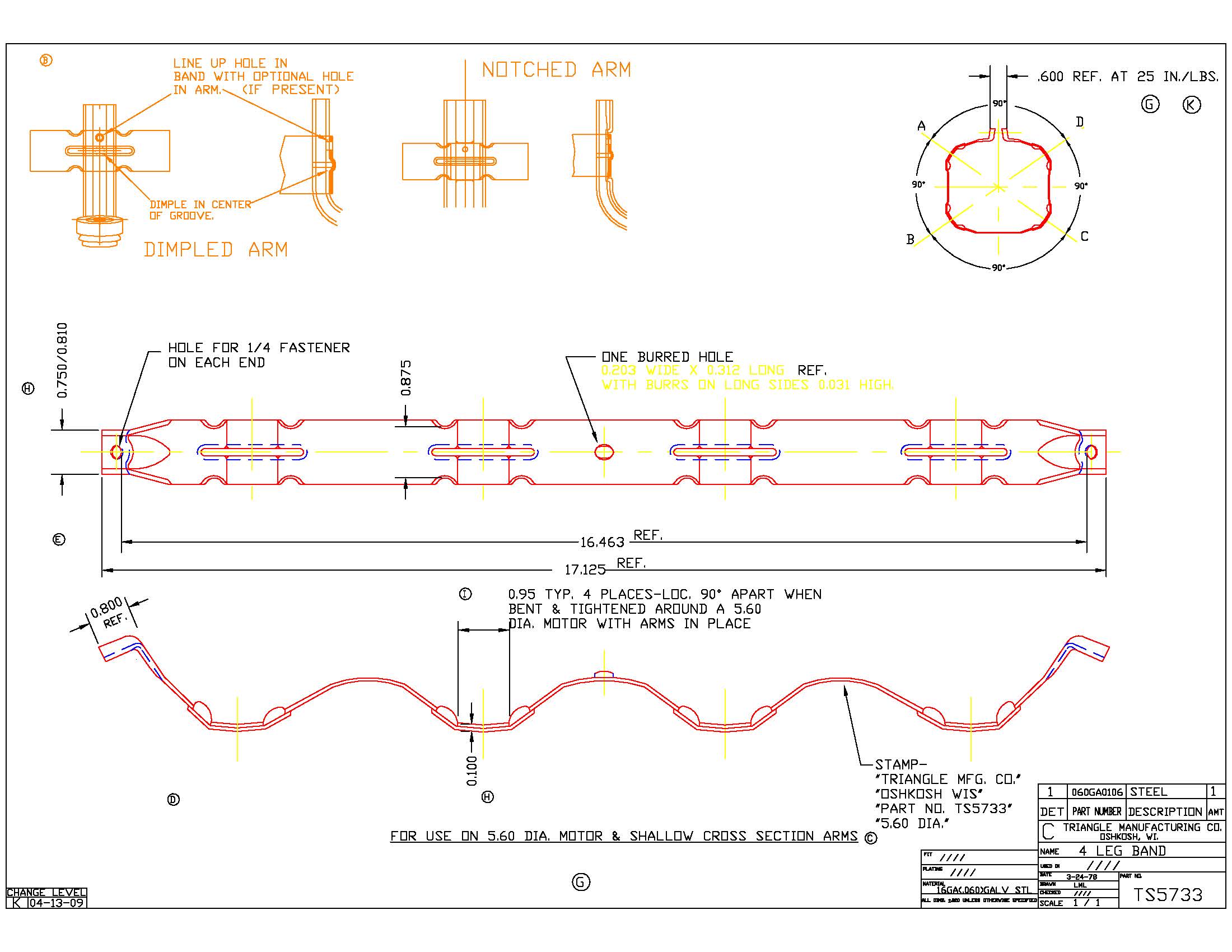

| Diagram Drawing File Path: | /var/www/html/Application/webroot/pub/media/catalog/product/technical-images/TS5733.jpg |
| Bearing Mount Type With Bearing: | No |
Stamped Steel Motor Mount Bands
With three TS arms, Triangle Manufacturing's motor belly band brackets are designed for motors with 4.4" to 6.5" diameters. Learn more about our TS-series motor mount bands today by contacting our team.
Value proposition TS: Motor Mount Band
Choose these motor mount bands for motor diameters ranging from 4.4" to 6.5". These assemblies, designed for the residential and HVAC industry, include 3 TS arms. Our motor mounts are considered to be the most durable and affordable units in the market. They are adaptable to assembly lines and are efficient in shipping due to knocked-down assembly. You can choose to customize your motor mount bands when ordering in high volume.
