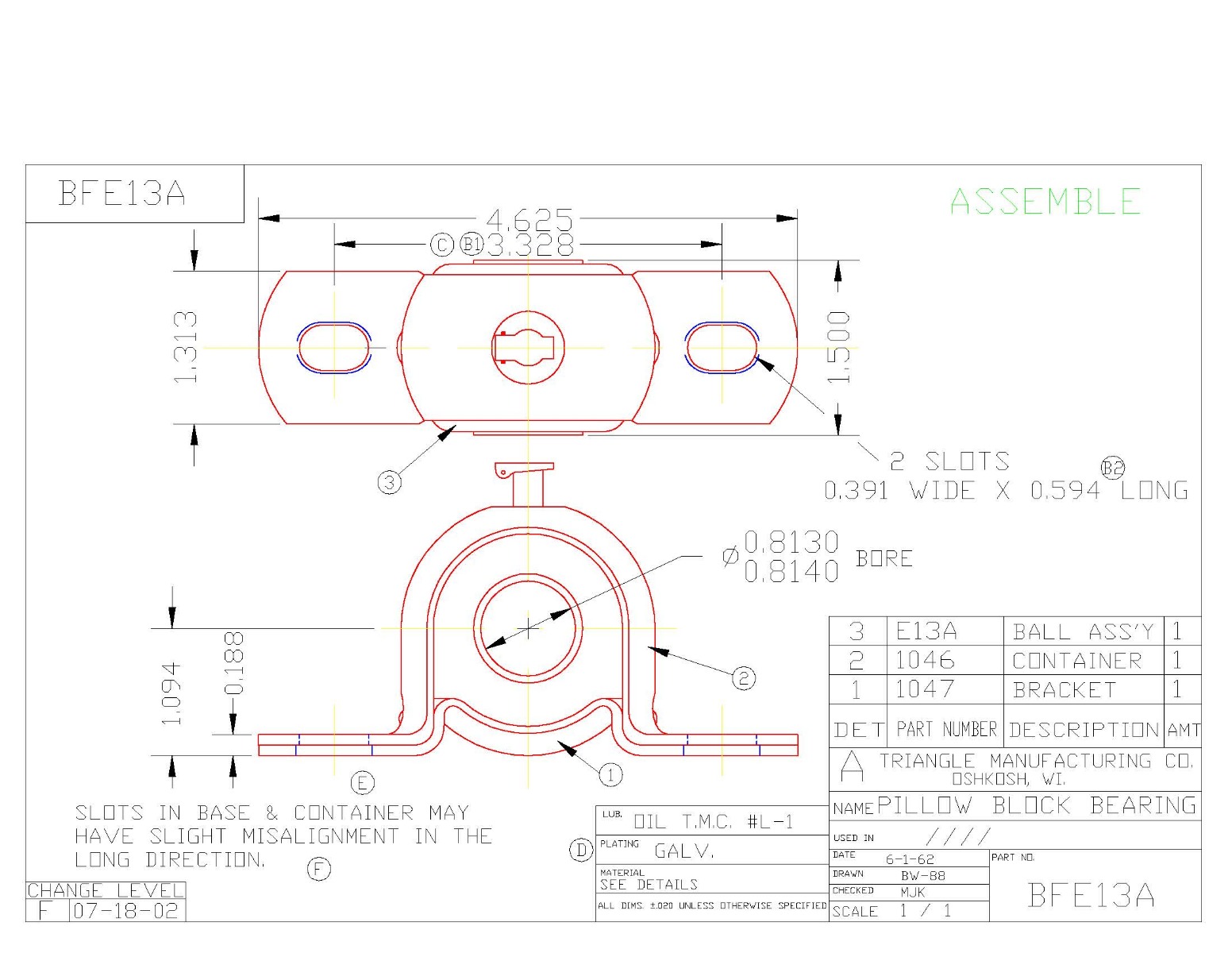

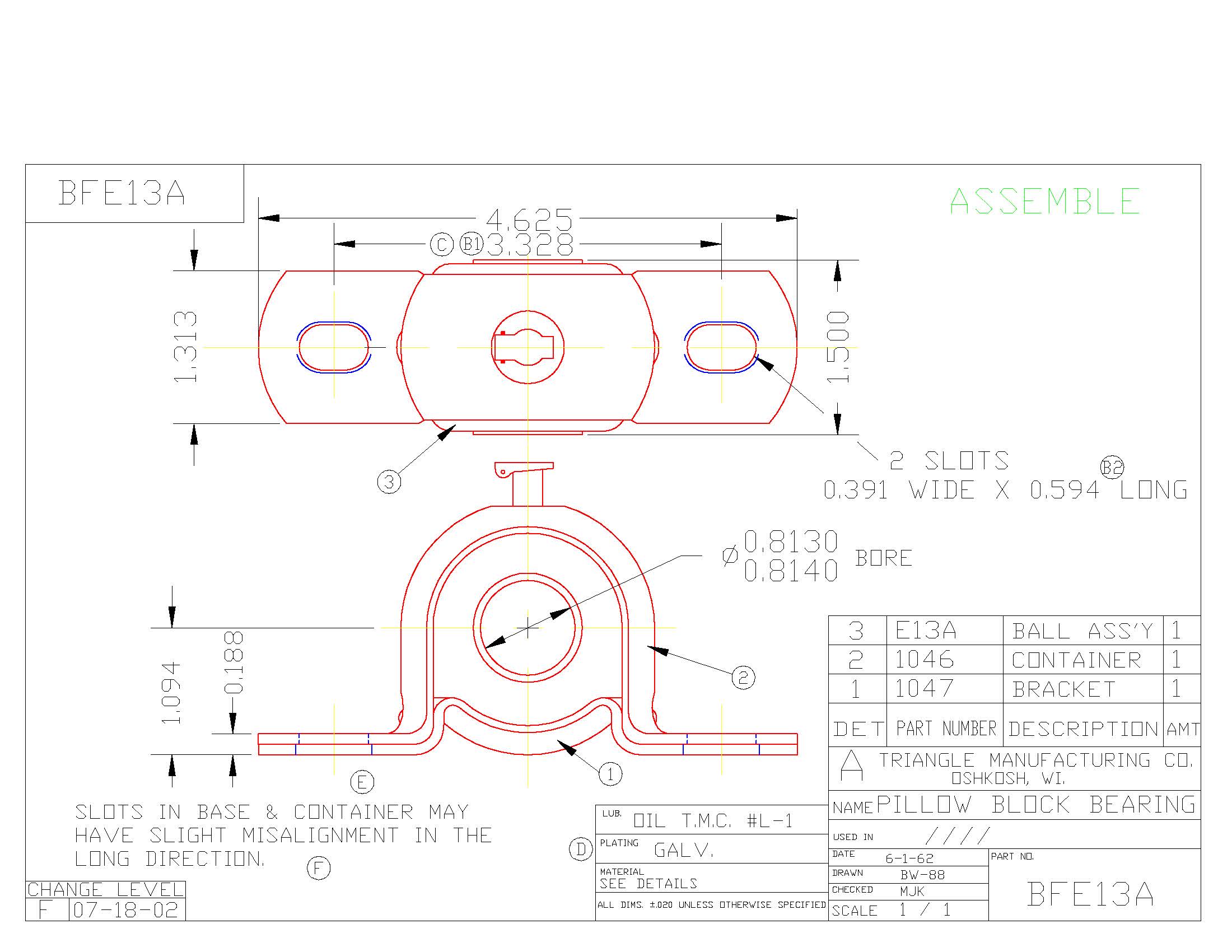

Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 13/16"
with Oil Cup, Center to Center 3.328", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Heavy Duty
Part #: BFE13A
IN STOCK. READY TO SHIP.
Stamped Steel Bearing Ball Sintered Bronze Bushing 2 Bolt Pillow Block Bearing with Bushing, 13 Gauge - 13/16"
with Oil Cup, Center to Center 3.328", Overall Length 4.625", Bearing Width 1.5", Spherical Diameter 2" - Heavy Duty
Part #: BFE13A
IN STOCK. READY TO SHIP.
Part #: BFE13A IN STOCK. READY TO SHIP.
PRODUCT SPECIFICATIONS
- Triangle Series
- BF
- Type
- Pillow Block Bearing with Bushing
- Shaft Size (Bore ID)
- 13/16"
- Inside Diameter Lower Tolerance
- 0.813"
- Inside Diameter Upper Tolerance
- 0.814"
- Bearing Insert Type
- Bearing Ball with Bushing
- Bushing Material
- Sintered Bronze
- Bearing Ball Material
- Stamped Steel
- Bearing Spherical Diameter
- 2"
- Lubrication Apparatus
- Oil Cup
- Other Lubrication Apparatus Options Available
- Yes
- Type of Lubricant
- SAE30 Non-Detergent Oil
- Bearing Width
- 1.5"
- Number of Mount Holes
- 2
- Mount Material
- Steel
- Mount Material Gauge
- 13 Gauge
- Overall Length
- 4.625"
- Mount Width
- 1.313"
- Mount Hole Center to Center
- 3.328"
- Mount Hole Shape
- Oval
- Mount Socket Diameter
- 2"
- Finish
- Pre-Plated Hot Dipped Galvanized Steel
- Other Mount Finish available
- Yes
- Tapped Hole Available
- Yes
- Overall Height
- 2.125"
- Bearing Fit Options Available
- Yes
- Strength
- Heavy Duty
2-Bolt Pillow Block Bearing Stamped from 13-Gauge Steel
Triangle Manufacturing's heavy-duty 13/16" 2-bolt pillow block bearing is available with a stamped spherical bearing and a self-lubricating bronze bushing. Self-lubrication reduces the risk of damage and results in a longer life-span. Learn more about our heavy-duty pillow block bearing applications.
*User Account Required | Create Account
| Triangle Series: | BF |
| Type: | Pillow Block Bearing with Bushing |
| Shaft Size (Bore ID): | 13/16" |
| Inside Diameter Lower Tolerance: | 0.813" |
| Inside Diameter Upper Tolerance: | 0.814" |
| Bearing Insert Type: | Bearing Ball with Bushing |
| Bushing Material: | Sintered Bronze |
| Bearing Ball Material: | Stamped Steel |
| Bearing Spherical Diameter: | 2" |
| Lubrication Apparatus: | Oil Cup |
| Type of Lubricant: | SAE30 Non-Detergent Oil |
| Bearing Width: | 1.5" |
| Number of Mount Holes: | 2 |
| Mount Material: | Steel |
| Overall Length: | 4.625" |
| Mount Hole Center to Center: | 3.328" |
| Mount Socket Diameter: | 2" |
| Strength: | Heavy Duty |
| Other Lubrication Apparatus Options Available: | Yes |
| Mount Material Gauge: | 13 Gauge |
| Mount Width: | 1.313" |
| Mount Hole Center to Center Type: | Imperial |
| Mount Hole Shape: | Oval |
| Finish: | Pre-Plated Hot Dipped Galvanized Steel |
| Other Mount Finish available: | Yes |
| Tapped Hole Available: | Yes |
| Overall Height: | 2.125" |
| Bearing Fit Options Available: | Yes |
| Min. Quantity for RFQ: | 100 |
| With Cushion: | No |
| Bearing Insert Material: | Sintered Bronze |
| Bearing Mount Type With Bearing: | No |
Description
2-Bolt Pillow Block Bearing Stamped from 13-Gauge Steel
Triangle Manufacturing's heavy-duty 13/16" 2-bolt pillow block bearing is available with a stamped spherical bearing and a self-lubricating bronze bushing. Self-lubrication reduces the risk of damage and results in a longer life-span. Learn more about our heavy-duty pillow block bearing applications.
