Triangle 2 Bolt Flange Bearing Types
Triangle Manufacturing Company offers various 2-bolt flange bearings. Learn about available sizes, load capacities, applications and more for each 2 bolt flange bearing type.
Miniature 2 Bolt Flange Bearing
Triangle's miniature 2 bolt flange bearings are stamped from 16-gauge galvanized steel and have a load capacity of 900 lbf. They can be manufactured with a sintered bronze, sintered iron or plastic spherical plain bearing.
Applications for Triangle's Miniature 2 Bolt Flange Bearings include:
- Lawn Mowers
- Small Conveyors
- Food Processing Equipment
- Vending Machines
| Shaft Size | Molded Nylon | Sintered Bronze | Sintered Iron |
| 1/4" | FMN4 | FM1404P* | FM1504P* |
| 5/16" | FMN5 | FM1405P* | FM1505P* |
| 3/8" | FMN6 | FM1406P | FM1506P* |
| 7/16" | FMN7 | FM1407P* | FM1507P* |
| 1/2" | FMN8 | FM1408P | FM1508P |
| 5/8" | FMN10 | FM1410P | FM1510P |
| 3/4" | FMN12 | FM1412P* | FM1512P |
*These 2 bolt flange bearings are not available on our website. Please contact us if you would like to learn more information.
Miniature 2 Bolt Center Flange Bearing
Triangle's miniature 2 bolt center flange bearings are designed for lighter duty applications or where smaller types of equipment impose space limitations. They are stamped from 16 gauge galvanized steel and manufactured with a sintered bronze, sintered iron or molded nylon spherical plain bearing.
Applications for Triangle's Two Piece Heavy Duty 2 Bolt Flange Bearings include:
- Vending Machines
- Light Duty Vehicles
- Lawn Mowers
| Shaft Size | Nylon Ball Unit | Bronze Ball Unit | Iron Ball Unit |
| 1/4" | CKN4* | CK1404P* | CK1504P* |
| 5/16" | CKN5* | CK1405P* | CK1505P* |
| 3/8" | CKN6 | CK1406P | CK1506P* |
| 7/16" | CKN7* | CK1407P* | CK1507P* |
| 1/2" | CKN8* | CK1408P | CK1508P |
| 5/8" | CKN10 | CK1410P | CK1510P* |
| 3/4" | CKN12* | CK1412P* | CK1512P* |
*These 2 bolt flange bearings are not available on our website. Please contact us if you would like to learn more information.
Medium 2 Bolt Flange Bearing
Traingle's medium duty 2 bolt flange bearings are stamped from 16-gauge galvanized steel. They can be manufactured with a sintered bronze, sintered iron or plastic spherical plain bearing.
Applications for Triangle's Medium Duty 2 Bolt Flange Bearings include:
- Lawn Mowers
- Conveyors
- Food Processing Equipment
- Agriculture Equipment
| Shaft Size | Molded Nylon | Sintered Bronze | Sintered Iron |
| 1/4" | FLM4* | FLB4* | FLW4* |
| 5/16" | FLM5* | FLB5* | FLW5* |
| 3/8" | FLM6* | FLB6* | FLW6* |
| 7/16" | FLM7* | FLB7* | FLW7* |
| 1/2" | FLM8* | FLB8 | FLW8 |
| 5/8" | FLM10* | FLB10 | FLW10 |
| 3/4" | FLM12 | FLB12 | FLW12 |
| 7/8" | FLM14* | FLB14 | FLW14 |
*These 2 bolt flange bearings are not available on our website. Please contact us if you would like to learn more information.
Extra Strength 2 Bolt Flange Bearing
Triangle's extra strength 2 bolt flange bearings are stamped from 14-gauge galvanized steel with a static load capacity of 1,600 lbf. They can be manufactured with a sintered bronze, sintered iron or plastic spherical plain bearing.
Applications for Triangle's Extra Strength 2 Bolt Flange Bearings include:
- Stadium Seating
- Fork-Lifts
- Construction Equipment
- Agriculture Equipment
| Shaft Size | Molded Nylon | Sintered Bronze | Sintered Iron |
| 1/4" | FJM4* | FJB4* | FJW4* |
| 5/16" | FJM5* | FJB5* | FJW5* |
| 3/8" | FJM6* | FJB6* | FJW6* |
| 7/16" | FJM7* | FJB7* | FJW7* |
| 1/2" | FJM8* | FJB8 | FJW8 |
| 5/8" | FJM10* | FJB10 | FJW10 |
| 3/4" | FJM12 | FJB12 | FJW12 |
| 7/8" | FJM14* | FJB14 | FJW14 |
*These 2 bolt flange bearings are not available on our website. Please contact us if you would like to learn more information.

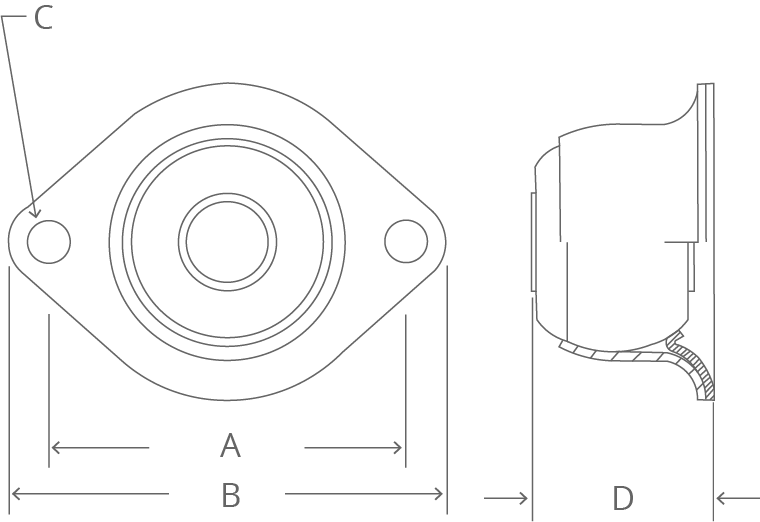

Heavy Duty 2 Bolt Flange Bearing
These heavy duty 2 bolt flange bearings are stamped from 13-gauge galvanized steel. They can be manufactured with a sintered bronze or sintered iron spherical plain bearing. They can also be manufactured with a grease-zerk fitting.
Applications for Triangle's Heavy Duty 2 Bolt Flange Bearings include:
- Solar Trackers
- Conveyors
- Construction Equipment
- Agriculture Equipment
| Shaft Size | Oil | Grease Zerk | Ball Material | A | B | C | D | Mount Hole Shape | Static Load Capacity (lbf.) |
| 7/8" | FG4014P* | FG4014G* | Bronze | 4.00" | 3.125" | 0.406" | 1.063" | Round | 1,300 |
| FH4014P* | FH4016G* | Bronze | 4.00" | 3.125" | 0.344" | 1.063" | Square | 1,200 | |
| FG4214P | FG4214G | Iron | 4.00" | 3.125" | 0.406" | 1.063" | Round | 1,300 | |
| FH4214P* | FH4214G* | Iron | 4.00" | 3.125" | 0.344" | 1.063" | Square | 1,200 | |
| 1" | FG4016P | FG4016G | Bronze | 4.00" | 3.125" | 0.406" | 1.063" | Round | 1,300 |
| FH4016P* | FH4016H* | Bronze | 4.00" | 3.125" | 0.344" | 1.063" | Square | 1,200 | |
| FG4216P | FG4216G | Iron | 4.00" | 3.125" | 0.406" | 1.063" | Round | 1,300 | |
| FH4216P* | FH4216G* | Iron | 4.00" | 3.125" | 0.406" | 1.063" | Square | 1,200 |
*These 2 bolt flange bearings are not available on our website. Please contact us if you would like to learn more information.

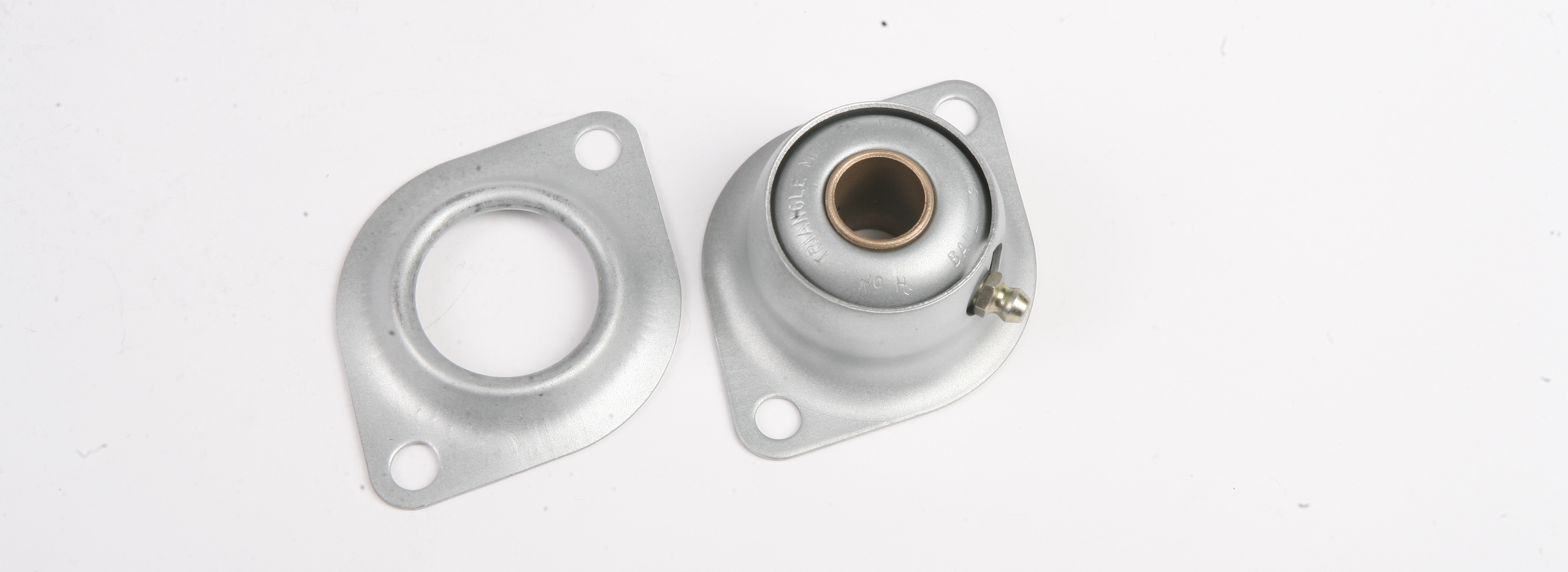

Two Piece Heavy Duty 2 Bolt Flange Bearing
Triangle's heavy duty 2 bolt flange bearings are stamped from 16-gauge galvanized steel. They are manufactured with a bearing that has a steel shell and sintered bronze bushing insert. They can also be manufactured with an oil cup or grease-zerk fitting.
Applications for Triangle's Two Piece Heavy Duty 2 Bolt Flange Bearings include:
- Agriculture Attachments
- HVAC Equipment
- Construction Equipment
| Oil Cup | Grease Zerk | Shaft Size | A | B | C | D |
| FAH8A | FAH8G | 1/2" | 2.75" | 3.375" | 0.328" | 1.406" |
| FAH10A | FAH10G | 5/8" | 2.75" | 3.375" | 0.328" | 1.406" |
| FAH12A | FAH12G | 3/4" | 2.75" | 3.375" | 0.328" | 1.406" |
| FAH14A | FAH14G | 7/8" | 2.75" | 3.375" | 0.328" | 1.406" |
| FAH16A | FAH16G | 1" | 2.75" | 3.375" | 0.328" | 1.406" |
| FBE12A | FBE12G | 3/4" | 3.281" | 4.00" | 0.406" | 1.562" |
| FBE13A | FBE13G | 13/16" | 3.281" | 4.00" | 0.406" | 1.562" |
| FBE14A | FBE14G | 7/8" | 3.281" | 4.00" | 0.406" | 1.562" |
| FBE15A | FBE15G | 15/16" | 3.281" | 4.00" | 0.406" | 1.562" |
| FBE16A | FBE16G | 1" | 3.281" | 4.00" | 0.406" | 1.562" |
| FBE18A | FBE18G | 1 1/8" | 3.281" | 4.00" | 0.406" | 1.562" |
| FBE19A | FBE19G | 1 3/16" | 3.281" | 4.00" | 0.406" | 1.562" |
| FBE20A | FBE20G | 1 1/4" | 3.281" | 4.00" | 0.406" | 1.562" |
| FCF19A | FCF19G | 1 3/16" | 3.875" | 4.781" | 0.406" | 1.813" |
| FCF20A | FCF20G | 1 1/4" | 3.875" | 4.781" | 0.406" | 1.813" |
| FCF24A | FCF24G | 1 1/2" | 3.875" | 4.781" | 0.406" | 1.813" |
Benefits of Having Triangle Become Your 2 Bolt Flange Bearing Supplier Include:
- Quiet Shaft Rotation: Due to Triangle's spherical plain bearings being self-lubricating, this results in a quieter operation.
- Self-Alignment: Self-aligning bearings come in handy when your shaft is misaligned with the bearing. This will save you time and extra machine costs to fix your application.
- Precision Bores: Triangle's bores are supplied to customer specification, accurately sized and straightened to eliminate variations occurring in press-fitted parts.
If you are interested in any of Triangle's 2 bolt flange bearings, contact us today or call us directly at (920) 235-3710.
